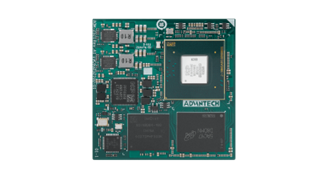

AOM-2521
Advantech AOM-2521 OSM 1.2 Computer-on-Module is powered by NXP i.MX 95 SoC which includes Cortex-A55 Hex-core in combination with one Cortex- M7 & Cortex- M33 real time processor, and an added Neural Network accelerator and 2D/3D graphics engine. It provides USB2.0, Gigabit Ethernet, MIPI-CSI, I2C, SPI, GPIO, CAN-FD and MIPI DSI display for embedded applications.
AOM-2521 is paired with Advantech OSM carrier board for faster end product peripheral integration and time-to-market. The reference schematics and layout checklists documentations for carrier board development will be provided along with the open-sourced Linux BSP, test utilities, hardware design utilities and reference drivers.
Key Features
-
NXP Arm® Cortex®-A55 i.MX95 Six Cores up to 2.0 GHz
-
1 x Arm Cortex-M7 core & 1 x Cortex-M33 core
-
Onboard LPDDR5 8 GB, 6400MT/s memory
-
Neural network accelerator built-in
-
1 x 4 lane MIPI-DSI, 2 x single channel LVDS or 1 x dual channel LVDS
-
1 x USB 3.2, 2 x USB 2.0, 5 x UART, 5 x I2C, 7 x GPIO, 3 x PWM, 2 x CAN-FD
-
1 x USB 3.2, 2 x USB 2.0, 5 x UART, 5 x I2C, 7 x GPIO, 3 x PWM, 2 x CAN-FD
-
Support Ycoto Linux
