MIO-5355

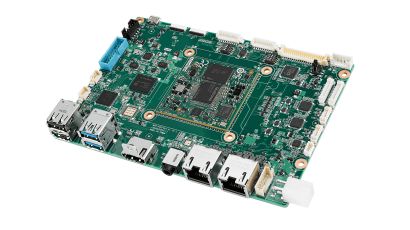

Advantech MIO-5355 is a 3.5-inch (146 x 102 mm) single-board computer powered by the Qualcomm Dragonwing QCS6490/QCS5430. It provides low-power and efficient performance with an 8x Kryo 670 CPU ranging from 1.9 to 2.7 GHz, plus an Adreno GPU 643, and an NPU capable of up to 12 TOPs for AI inference. [Image of Qualcomm QCS6490 block diagram]
Key Features
- Processor: Qualcomm® QCS6490/QCS5430 on 3.5" SBC
- Performance: Powerful but Low Power with 8x Kryo 670 CPU (1.9 up to 2.7 GHz) + Adreno GPU 643 + up to 12.3 TOPs iNPU
- Memory & Storage: Rugged Design with On-board 8GB LPDDR5 and 128GB UFS or eMMC
- Display & I/O: Flexible Displays with HDMI and LVDS or eDP & Rich I/Os: 2x GbE, 6x USB, 4x COM, 2x MIPI-CSI, 1x Audio
- Expansion: 3x M.2 Expansions:
- M.2 E-Key 2230 for WiFi/BT
- M.2 B-Key 3052 for 4G/LTE
- M.2 B-Key 2280 for NVMe Storage
- Environment: Supports extended operating temperature -20~70°C
- OS Support: Yocto, Windows on Arm, and Ubuntu
