ROM-5720 User Guide

Contents

• 1 產品介紹 (Product introduction)
  • 1.1 產品特性 (Product Features)
  • 1.2 產品官網連結 (Product official website link)
• 2 硬件接口說明 (Hardware interface introduction)
  • 2.1 接口布局和尺寸 (Layout and Sizes)
  • 2.2 ROM-5720 接口布局圖 Board Dimension Layout
  • 2.3 ROM-DB5901 接口布局圖 Board Dimension Layout
  • 2.4 主板内置插针式引脚排序方式 (Pin Header defination)
  • 2.5 Internal I/O
  • 2.6 Rear I/O
  • 2.7 接口引脚定義 (Pin definitions)
  • 2.8 机械尺寸 (Mechanical Characteristics)
• 3 快速入门 (Quick Start)
  • 3.1 系统下载 (OS Download)
  • 3.2 Linux 燒錄方法 (Linux Flash eMMC Method)
  • 3.3 Debug 串口調試 (Debug port Setting)
• 4 Linux系统的基本使用 (Linux System Basic Operating Method)
  • 4.1 UUU 使用方法 (USB Connection (OTG port))
  • 4.2 Display Setting (ROM-5720)
  • 4.3 乙太網路使用方法 (Ethernent Testing Method)
  • 4.4 4G使用方法 (4G Testing Method)
  • 4.5 GPIO使用方法 (GPIO Operating Method)
  • 4.6 串口使用方法 (Serial Port Operating Method)
  • 4.7 遠程訪問及文件傳輸 (Remote Access and File Transimmion)
    • 4.7.1 Windows下SSH访问及文件传输
• 5 通用方法 (General Method)
  • 5.1 Mic錄音 (Mic record)
  • 5.2 PCIe裝置移除與rescan
• 6 Linux BSP編譯方法 (Linux BSP Compile Method)
  • 6.1 Yocto 4.2
  • 6.2 Yocto 3.0
• 7 Build known issue

---

產品介紹(Product introduction)

產品特性(Product Features)

• NXP i.MX 8M processor with dual or quad Arm Cortex A53 cores
• 1 x Arm Cortex-M4 core
• Onboard 2GB LPDDR4 memory and eMMC 16GB
• 1 x HDMI2.0 up to 4096 x 2160, 1 x 4-Lane MIPI DSI
• 2 x USB3.0, 4 x USB2.0, 4 x UART, 4 x I2C, 12 x GPIO, 1 x PCIe2.0, 1 x 4-lane MIPI CSI camera input, 1 x 2-lane MIPI CSI camera input and 2 x Gigabit LAN
• Supports OpenGL ES 3.1/3.0/2.0/1.1, Open CL 1.2, and Vulkan hardware accelerators
• Supports 4Kp60 HEVC/H.265 decoding with HDR
• Cable pack & panel included
• Evaluative image & test utility built-in

產品官網連結(Product official website link)

ROM-5720

---

硬件接口說明(Hardware interface introduction)

接口布局和尺寸(Layout and Sizes)

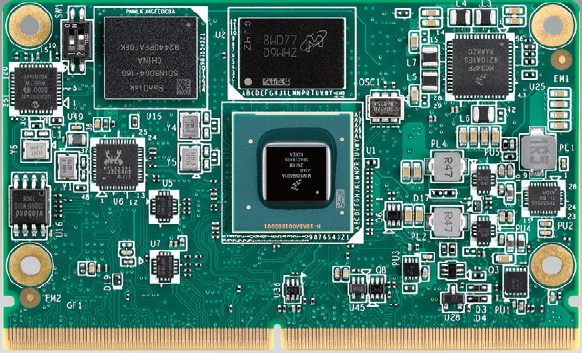

ROM-5720 接口布局圖 Board Dimension Layout

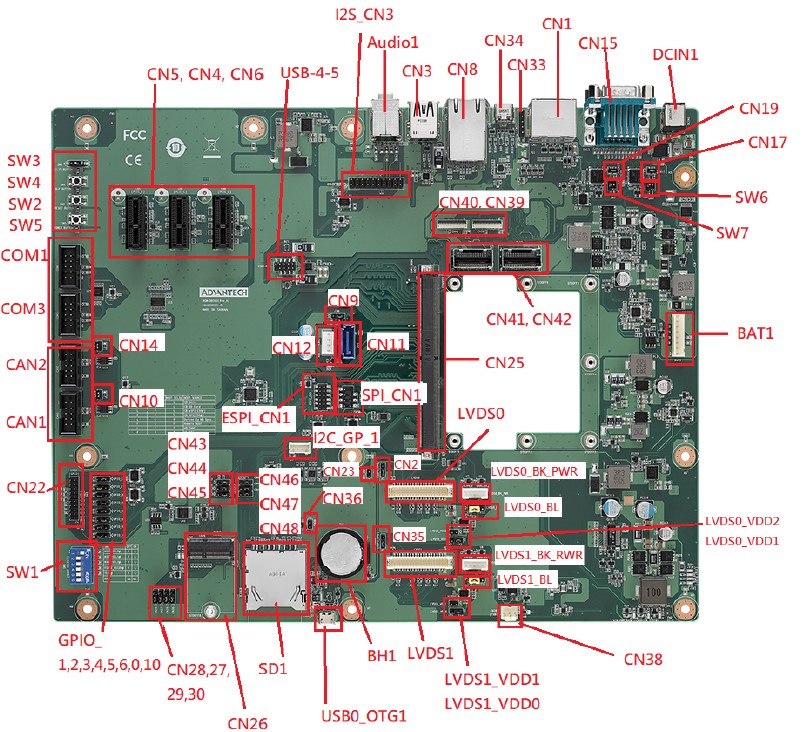

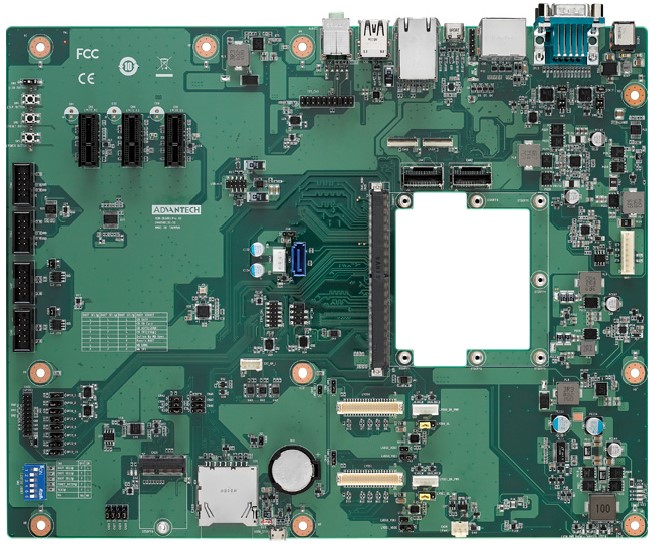

ROM-DB5901 接口布局圖 Board Dimension Layout

主板内置插针式引脚排序方式 (Pin Header defination)

Internal I/O

Position	Description	Connector Type
BAT1	PIN Header for Battery	WAFER 8P 2.54mm 180D(M) DIP A2543WV2-8P
BH1	RTC Battery Holder	BATTERY HOLDER 24.923.48.9 CR2032 BH800.4GG
CAN1	CANBus Port 1	BOX HEADER 5x2P 2.54mm 180D(M) DIP 23N6960-10S10
CAN2	CANBus Port 2	BOX HEADER 5x2P 2.54mm 180D(M) DIP 23N6960-10S10
COM1	COM Port 1	BOX HEADER 5x2P 2.54mm 180D(M) DIP 23N6960-10S10
COM3	COM Port 3 (Debug Port)	BOX HEADER 5x2P 2.54mm 180D(M) DIP 23N6960-10S10
CN4	PCIex1 Connector 1	PCIEXPRESS 36P 180D(F) DIP 2EG01817-D2D-DF
CN5	PCIex1 Connector 2	PCIEXPRESS 36P 180D(F) DIP 2EG01817-D2D-DF
CN6	PCIex1 Connector 3	PCIEXPRESS 36P 180D(F) DIP 2EG01817-D2D-DF
CN11	SATA Connector	Serial ATA 7P 1.27mm 180D(M) DIP WATM-07DBN4A3B8
CN12	SATA Power Connector	WAFER 4P 2.5mm 180D(M) DIP 24W1161-04S10-01T
CN22	GPIOx8 sets	PIN HEADER 10x2P 2.0mm 180D(M) DIP 21N22050
CN25	MXM 3.0 Connector	MXM Conn. 314P 90D(F) SMD AS0B821-S78B-7H
CN26	M.2 Key E Slots	NGFF 75P 0.5mm 90D(F) H=4.2mm SMD AS0BC21-S40BE
CN38	FAN (Reserved)	WTB Con. 3P 2.54mm 180D(M) DIP A2543WV0-3P-6T-5e
CN39	MIPI-CSI1 (FPC, 4-Lane)	FPC 39P, 0.6mm, H0.9mm
CN40	MIPI-CSI0 (FPC, 2-Lane)	FPC 39P, 0.6mm, H0.9mm
CN41	MIPI-CSI0 (Mini-SAS, 2-Lane)	Mini SAS 36P/0.8mm/(M)/LCP/VA/G15u/S/BK/W
CN42	MIPI-CSI1 (Mini-SAS, 4-Lane)	Mini SAS 36P/0.8mm/(M)/LCP/VA/G15u/S/BK/W
ESPI_CN1	ESPI	PIN HEADER 6x2P 2.0mm 180D(M) SMD 21N22050-12M00B
I2C_GP_1	I2C Pin Header	WAFER BOX 4P 2.00mm 180D(M) DIP 721-81-04TW00
I2C_CN3	Audio Codec Board	PIN HEADER 2x10P 2.54mm 180D(M) DIP 21N22564
LVDS0	LVDS0	Wafer 2x20P/1.25mm/(M)/NY9T/VA/GFL/S/WH/W
LVDS_BK_PWR	LVDS0 Back Light	WAFER BOX 5P 2.0mm 180D(M) DIP A2001WV2-5P
LVDS1	LVDS1	Wafer 2x20P/1.25mm/(M)/NY9T/VA/GFL/S/WH/W
LVDS1_BK_PWR	LVDS1 Back Light	WAFER BOX 5P 2.0mm 180D(M) DIP A2001WV2-5P
SD1	SD Card Slot	SD CARD 9P 90D(F) SMD WK2192CS3D-7H
SPI_CN1	SPI Pin Header	PIN HEADER 4x2P 2.54mm 180D(M) SMD 21N22564
SW2	Reset Button	TACT SW STS-091 SMD 4P H=3.8mm
SW4	SLP Button	TACT SW STS-091 SMD 4P H=3.8mm
SW5	Power Button	TACT SW STS-091 SMD 4P H=3.8mm
USB0_OTG1	USB OTG	Micro USB 5P/0.65mm/(F)/NY9T/GFL/RA/S/BK/B
USB-4-5	USB Port 4, Port 5	PIN HEADER 2x5P 2.0mm 180D(M) SMD 21N22050

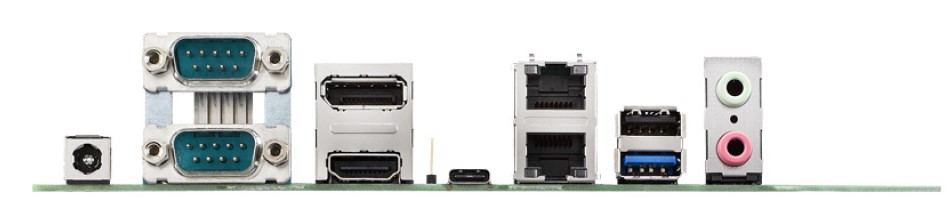

Rear I/O

接口引脚定義 (Pin definitions)

• 電池(BAT1) & 電池扣(BH1)
• CAN(CAN1,CAN2)
• 串口(COM_DB(COM3)、COM1、UART0、UART2)
• 显示接口(LVDS、LVDS Backlight、HDMI、DP)
• LAN接口(LAN)
• USB接口(USB1-2、USB-4-5、USB Type C、USB OTG)
• 音频接口(Audio Output & Audio Codec)
• 电源及指示灯和开关机复位按钮(Power、LED、Power Button、Reset Button、Sleep Button)
• GPIO接口
• MINI_PCIE接口_M.2接口_SPI、I2C_接口

机械尺寸 (Mechanical Characteristics)

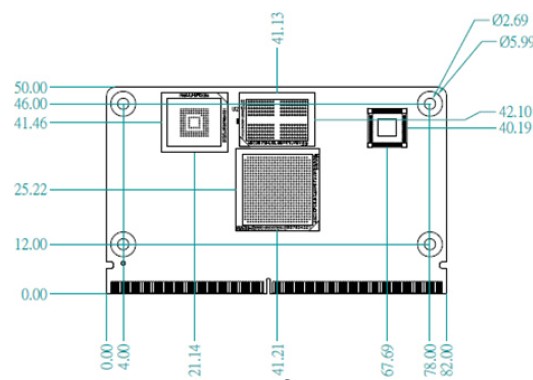

ROM-5720

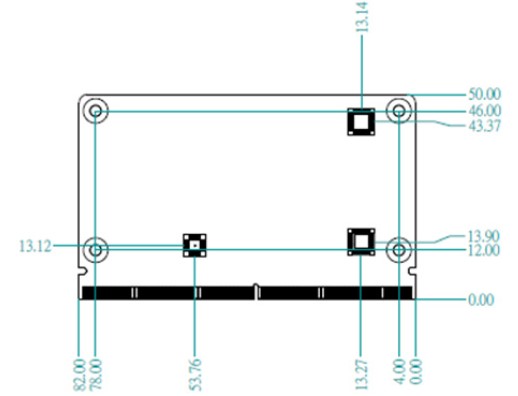

Dimensions: SMARC form factor size, 82mm (D) x 50mm (W) Height on Top: Under 3.0 mm base on SPEC definition (without heat sink) Height on Bottom: Under 1.3 mm base on SPEC definition

---

快速入门 (Quick Start)

系统下载 (OS Download)

Linux 燒錄方法 (Linux Flash eMMC Method)

使用Flash tool 燒錄鏡像到eMMC (Flash image into eMMC by Flash Tools)

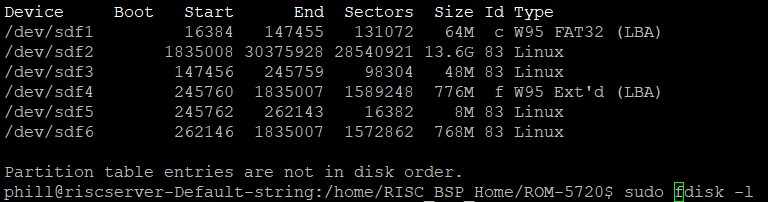

Step0: 檢查SD卡在Linux 環境的代號 (check SD card symbol in Linux system)

Step1: 創造一張可開機的SD 卡 (Create a bootable SD card)

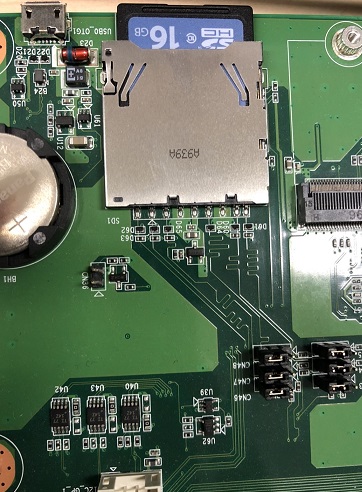

Step2: 將可開機的SD 卡插入底板SD卡卡槽 (Plug the SD card into Carrier board's SD card slot)

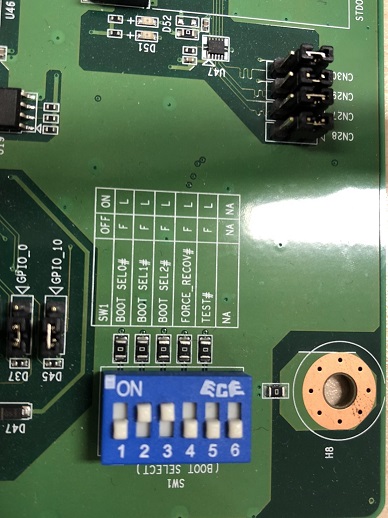

Step4: 確認開機選擇指撥開關

SD 卡開機模式:

Step3: 打開電源 和 終端機 (Turn on the Power & Terminal)

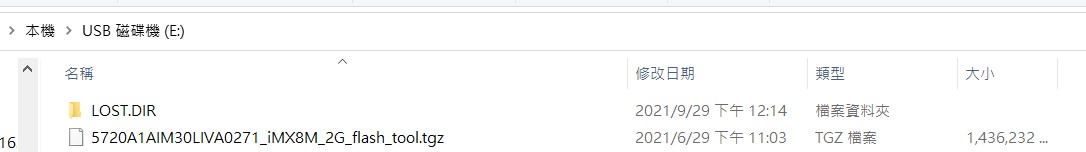

Step4: 壓縮flash tools 檔案,並複製到U盤中 (the flash tools file, then copy to USB Disk)

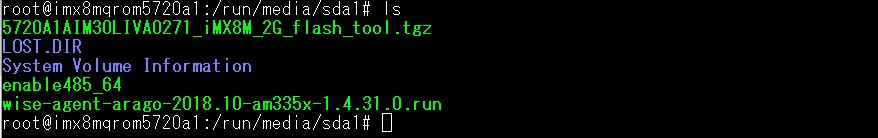

Step 5: Yocto 系統會自動掛載 U盤 在 /run/media/sda1 下

並拷貝 5720A1AIM30LIVA0271_iMX8M_2G_flash_tool.tgz 到根目錄 (copy the file into Yocto system)

cp -a 5720A1AIM30LIVA0271_iMX8M_2G_flash_tool.tgz /

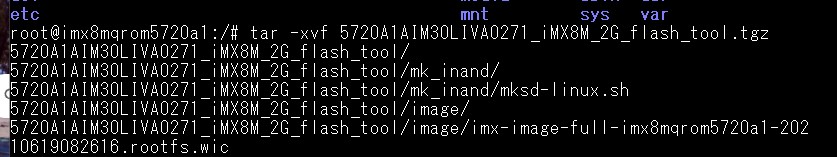

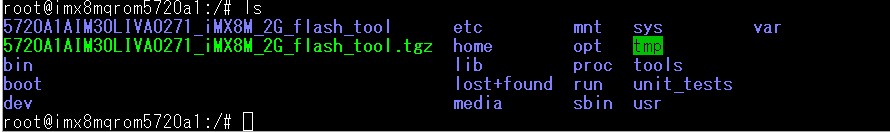

在Yocto 系統中解壓縮 (Unzip the file in Yocto system on ROM-5720)

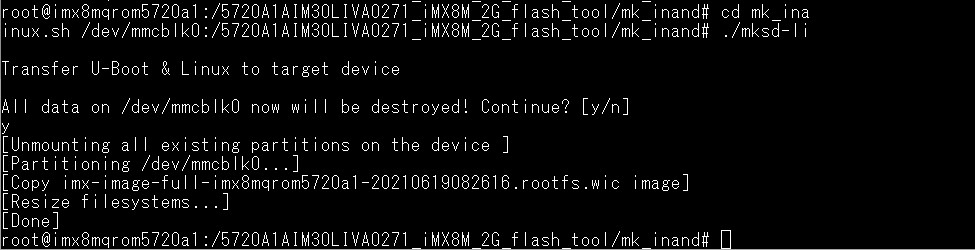

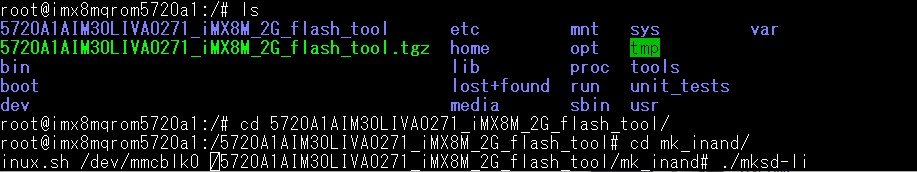

Step 6. 燒錄eMMC 鏡像 (flash image into eMMC flash by flash tool file)

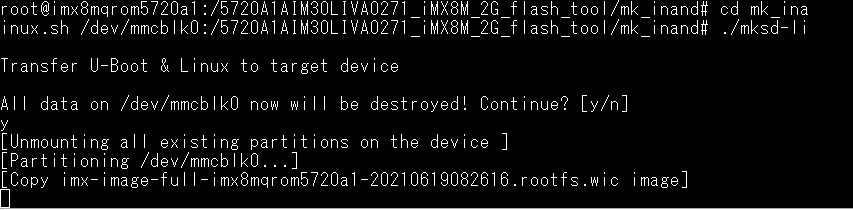

./mksd-linux.sh /dev/mmcblk0

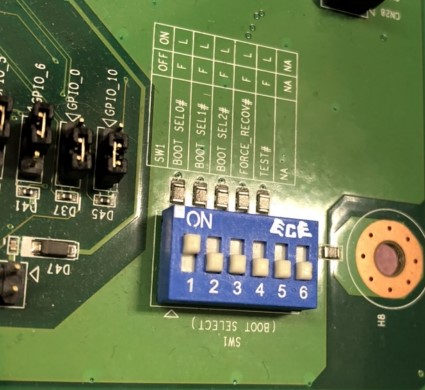

Step 7. 結束燒錄後, 請改變撥碼開關至 1 on, 其他 off (eMMC開機模式) (Finish the flash process, please change the switch (SW1) to 1 on, others off)

移除SD卡, 拔除電源, 改變撥碼開關 (unplug the SD card, turn off power, change the SW1 switch to eMMC mode)

eMMC mode: 1 on, others off

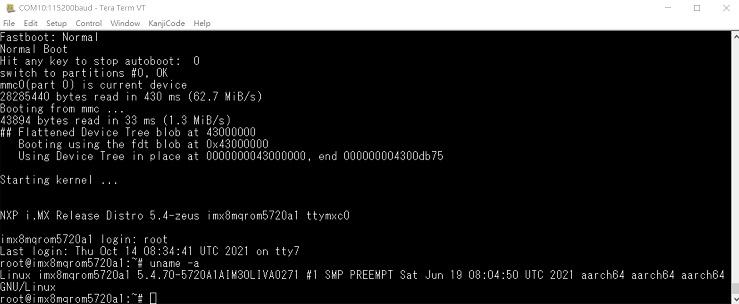

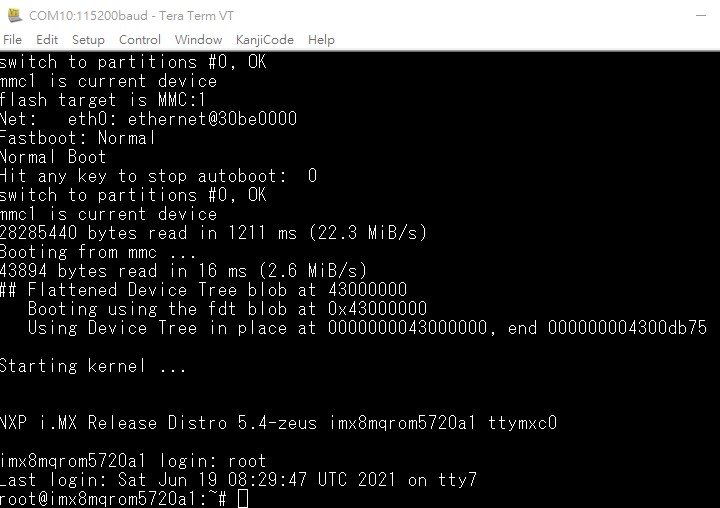

Step 8. 重新上電開機 (Turn on the power, then check the Debug message)

Debug 串口調試 (Debug port Setting)

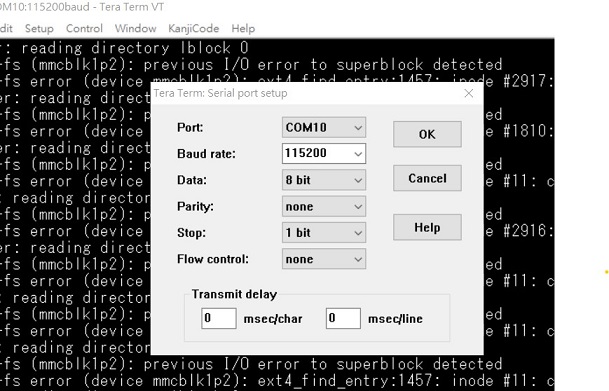

以 Tera Term 为例介绍如何使用串口调试功能

Baud Rate波特率：115200
Data 数据位：8
Parity 奇偶校验：无
Stop 停止位：1
Flow Control流控：无

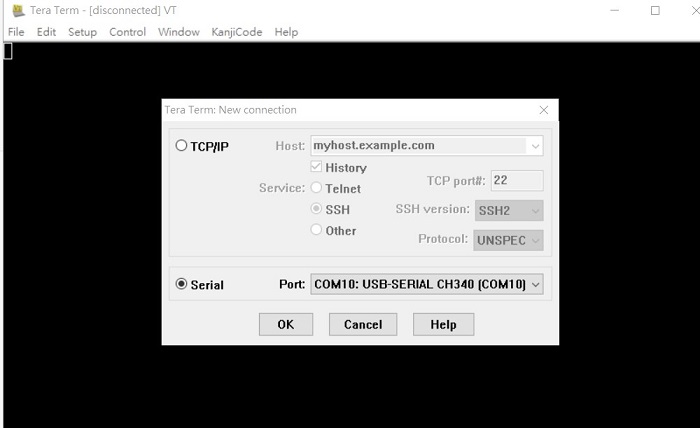

Tera Term Tool

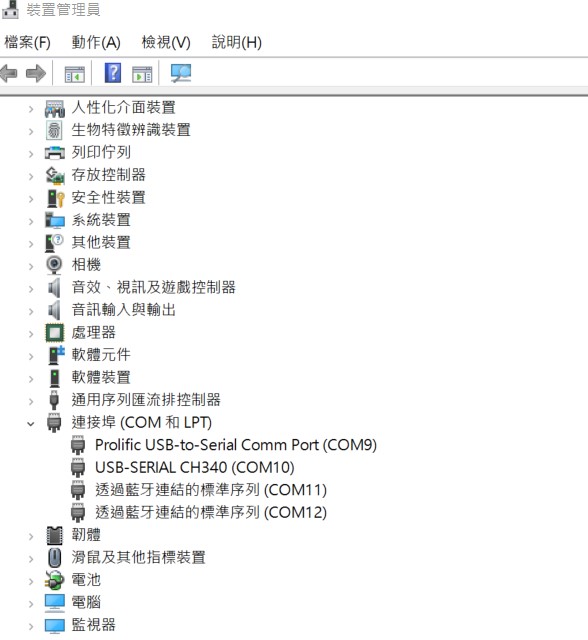

Check the Serial port in Device Manager (查看PC端的串口号):

if you can not identify the Serial device, please check your serial driver.

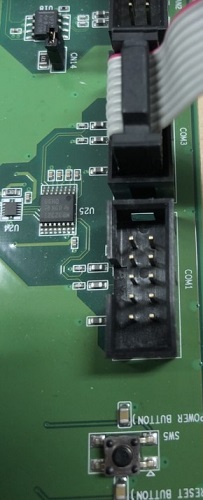

Debug port connection (串口連接)

Log into Terminal Tool (进入串口调试终端):

---

Linux系统的基本使用(Linux System Basic Operating Method)

UUU 使用方法(USB Connection (OTG port))

Display Setting (ROM-5720)

U-boot Command:

setenv fdt_file imx8mq-rom5720-a1-dcss-adv7535.dtb
env save
boot

Yocto 2.5

Display	DTB File
DSI to HDMI	adv-imx8mq-rom5720-a1-dcss-adv7535-b3.dtb
DSI to HDMI (lcdif)	adv-imx8mq-rom5720-a1-lcdif-adv7535.dtb
DSI auog101uan02	adv-imx8mq-rom5720-a1-dcss-auog101uan02.dtb
Dual Display (DSI to HDMI + HDMI)	adv-imx8mq-rom5720-a1-dual-display.dtb
M.2 SDIO	adv-imx8mq-rom5720-a1-m2-sdio.dtb
M.2 I2S	adv-imx8mq-rom5720-a1-m2-i2s.dtb

Yocto 3.0

Display	DTB File	Note
DSI to HDMI	imx8mq-rom5720-a1-dcss-adv7535.dtb	weston.ini: drm-device=card2
DSI to HDMI (lcdif)	imx8mq-rom5720-a1-lcdif-adv7535.dtb
DSI auog101uan02	imx8mq-rom5720-a1-dcss-auog101uan02.dtb
Dual Display (DSI to HDMI + HDMI)	imx8mq-rom5720-a1-dual-display.dtb	weston.ini: drm-device=card1
M.2 SDIO	imx8mq-rom5720-a1-m2-sdio.dtb

乙太網路使用方法(Ethernent Testing Method)

Command: ifconfig

Command: ping -I eth1 8.8.8.8

WiFi使用方法(WIFI Testing Method)

killall wpa_supplicant
ifconfig wlan0 up
wpa_passphrase "SSID" "PASSWORD" > /tmp/wpa.conf
wpa_supplicant -BDwext -iwlan0 -c/tmp/wpa.conf
udhcpc -b -i wlan0

ping 8.8.8.8
# PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
# 64 bytes from 8.8.8.8: icmp_seq=1 ttl=54 time=2.10 ms

4G使用方法(4G Testing Method)

Command:
Test 4G: (EWM-C117FL06E - USB)
  Step 1: Connect EWM-C117FL06E to Mini PCIE slot on 9680015491 and connect
          the card to CN6 PCIe_D slot on ROM-DB5901.
  Step 2: Connect the antenna 1750007990-01 to the SMA (F) connector on
          9680015491 and connect the IPEX connector to MT1 on EWM-C117FL06E module.
  Step 3: Connect the Mini USB cable from 9680015491 to USB 2.0 Type A port on
          ROM-DB5901.
  Step 4: Power on and execute the pppd command to connect to the network.

GPIO使用方法(GPIO Operating Method)

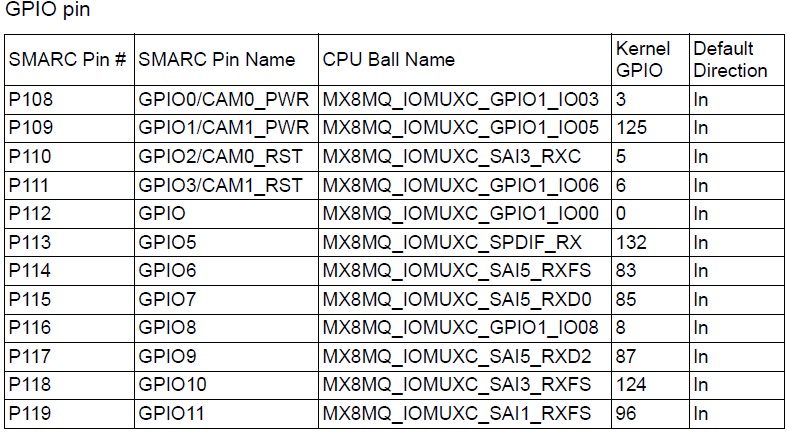

# Loop-back Test (Take GPIO4 and GPIO5 as examples)

# Step 1: Connect GPIO4 and GPIO5
# Step 2: Export GPIO interface
echo 0 > /sys/class/gpio/export
echo 132 > /sys/class/gpio/export

# Step 3: Set direction
echo out > /sys/class/gpio/gpio1/direction
echo in > /sys/class/gpio/gpio2/direction

# Step 4: Read value and set output value then check
cat /sys/class/gpio/gpio2/value
# 1
echo 0 > /sys/class/gpio/gpio1/value
cat /sys/class/gpio/gpio2/value
# 0

串口使用方法(Serial Port Operating Method)

RS-232 Test

• COM0: CN15A 上 (SER0/UART3): /dev/ttymxc2
• COM2: CN15B 下 (SER2/UART2): /dev/ttymxc1
• COM3: (A53 debug/SER3/UART1): /dev/ttymxc0
• COM1: (M4 debug/SER1/UART4): /dev/ttymxc3

Loopback test (eg. ttymxc1) — Before loopback test, connect tx and rx:

stty -F /dev/ttymxc1 115200
stty -F /dev/ttymxc1 -echo
cat /dev/ttymxc1 &
echo test > /dev/ttymxc1

蓝牙使用方法(BlueTooth Operating Method)

$ hciconfig hci0 up
$ bluetoothctl
$ discoverable on
$ pairable on
$ scan on
[NEW] FC:18:3C:8D:75:F4 myphone
$ scan off
$ pair FC:18:3C:8D:75:F4
$ connect FC:18:3C:8D:75:F4

遠程訪問及文件傳輸(Remote Access and File Transimmion)

查看主板IP位址 (Check IP Address):

ifconfig

Windows下SSH访问及文件传输

SSH Remote Log into Device

• SSH远程登录，以putty选择putty.exe（或者使用Xshell、SecureCRT等类似软件）
• 需要设置远程设备的IP、通讯端口（默认22）、通讯方式，登录后验证用户名密码

---

通用方法(General Method)

查看CPU温度(Check CPU Temperature)

cat /sys/devices/virtual/thermal/thermal_zone0/temp
# 44600

# 或者直接以度爲單位顯示
echo $[$(cat /sys/class/thermal/thermal_zone0/temp)/1000]°
# >>> 45°

查看CPU频率(Check CPU Frequency)

cat /sys/devices/system/cpu/cpu0/cpufreq/cpuinfo_cur_freq
# >> 900000
cat /sys/devices/system/cpu/cpu0/cpufreq/cpuinfo_max_freq
# >> 1200000

查看内存容量(Check Memory Capacity)

busybox free -m
#              total       used       free     shared    buffers     cached
# Mem:       1794920     516080    1278840      17252      9852        80292
# -/+ buffers/cache:     425936    1368984
# Swap:            0          0          0

查看存储容量(Check Storage Capacity)

busybox df -h

網路Ping測試(Ping Network Testing)

ping 8.8.8.8
# PING 8.8.8.8 (8.8.8.8) 56(84) bytes of data.
# 64 bytes from 8.8.8.8: icmp_seq=1 ttl=54 time=2.10 ms
# 64 bytes from 8.8.8.8: icmp_seq=2 ttl=54 time=2.10 ms

設置RTC (RTC Setting)

systemctl stop ntpdate.service
date 090816072021 && hwclock -w && date
# Wed Sep  8 16:07:00 UTC 2021
# Wed Sep  8 16:07:00 UTC 2021
date
# Wed Sep  8 16:07:06 UTC 2021

Mic錄音 (Mic record)

amixer set Mic 20%
arecord -D plughw:0,0 -r 16000 -f S16_LE ./f-16000.wav
aplay ./f-16000.wav

PCIe裝置移除與rescan

# 移除 eth1
echo "1" > /sys/bus/pci/devices/0000\:01\:00.0/remove

# rescan 恢復 eth1
echo "1" > /sys/bus/pci/rescan

---

Linux BSP編譯方法(Linux BSP Compile Method)

Yocto 4.2

Yocto 3.0

---

Build known issue

如果有驗證上的錯誤 請使用以下的方法

repo sync failed — Server certificate verification failed

export GIT_SSL_NO_VERIFY=1
# or
git config --global http.sslverify false

nnshark error

https://community.nxp.com/t5/i-MX-Processors/Yocto-3-3-5-10-72-BSP-Build-Fail/m-p/1487902
