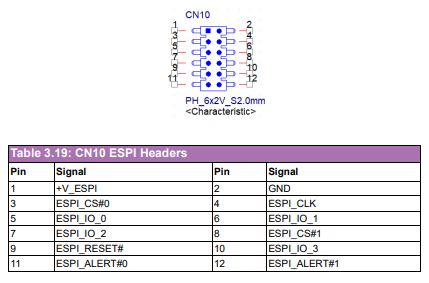

CN10 ESPI Headers

CN10 ESPI Headers

CAN0 1 CAN Bus Connectors

CN14 CAN0 Terminal Resistor Selection
