RSB-4680 Android User Guide
產品介紹 (Product Introduction)
產品特性 (Product Features)
- Rockchip ARM Cortex-A17 RK3288 Quad Core, up to 1.6GHz
- Onboard 2GB DDR3L memory and 8GB eMMC
- HDMI 3840x2160 at 60Hz, VGA 1920x1200 at 60Hz, Dual Channel 18/24/30 bit LVDS
- Support 4K H.264/H.265 Video decoder
- 6 UART, 6 USB2.0, 1 GbE, 8 GPIO, 1 MIPI CSI, 1 SPI
- M.2 for WIFI/BT support, mini-PCIe for 3G/4G support
產品官網連結 (Product official website link)
硬件接口說明 (Hardware interface introduction)
接口布局和尺寸 (Layout and Sizes)

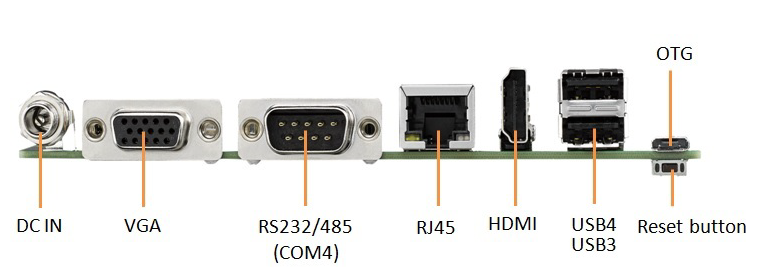

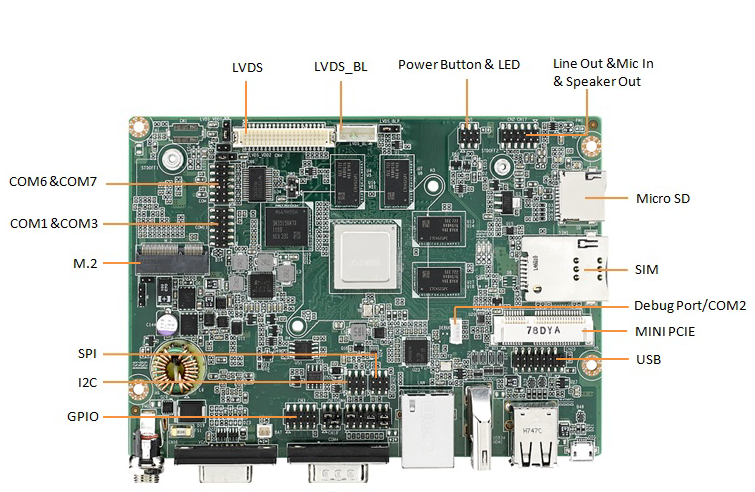

RSB-4680 接口布局圖 (Board Dimension Layout)

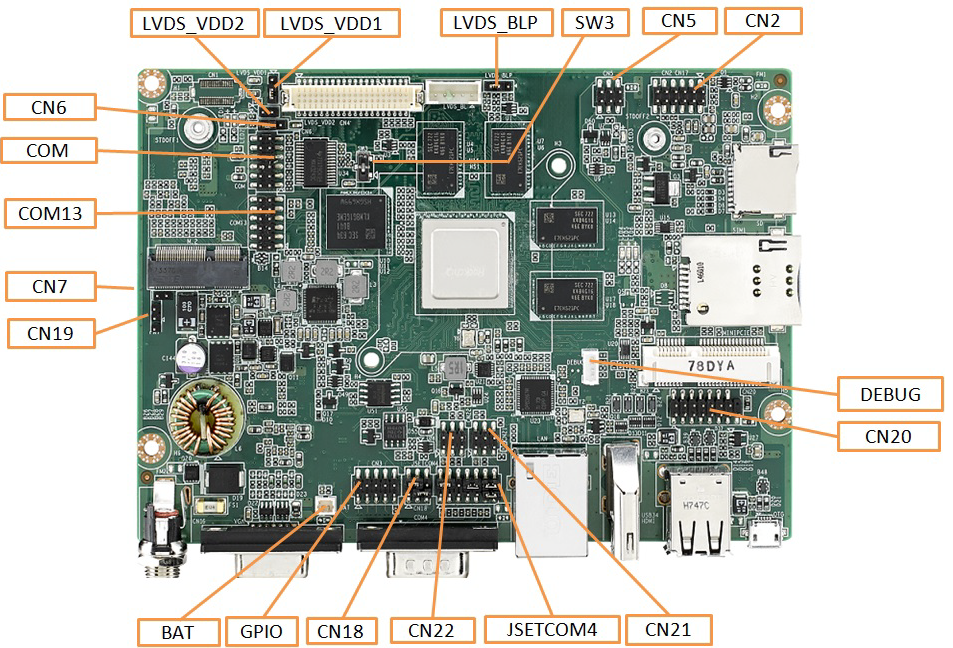

Connector List
| Connector | Description |
|---|---|
| BAT | RTC Battery Connector |
| CN2 | Audio |
| CN3 | GPIO |
| CN4 | 18/24/30 bit Dual-Channel LVDS |
| LVDS_BL | LVDS Backlight Control |
| CN5 | Power Button & LED |
| CN7 | Recover |
| CN16 | 12V DC Jack |
| CN20 | Internal USB Pin Header |
| USB34 | Dual Type A USB Connector |
| OTG | Micro USB Connector |
| CN21 | SPI |
| CN22 | I2C |
| COM | Internal RS232 (COM6 & COM7 with 12V/5V Power) |
| COM13 | Internal RS232 (COM1 & COM3) |
| COM4 | External COM (With RS232 & RS-485) |
| DEBUG | COM2 or Console |
| HDMI | HDMI |
| LAN | LAN |
| M.2 | M.2 |
| MINIPCIE | MINIPCIE |
| SD | Micro SD |
| SIM1 | Standard SIM |
| SW2 | Reset Button |
| VGA | VGA |

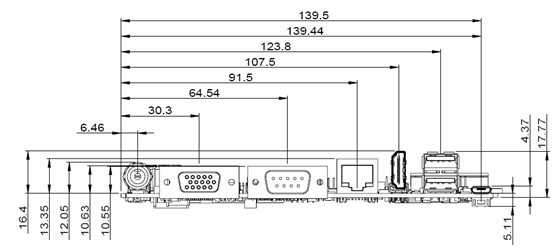

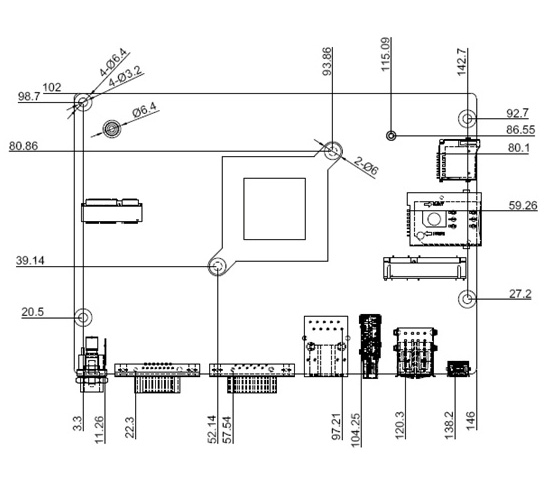

机械尺寸 (Mechanical Characteristics)
系统下载 (OS Download)
- Android 系统 (Android OS)
- Android 8.1: OS Support List（Android 6.0.1 ~ Android 8.1.0）
- Android 6.0: OS Support List（Android 6.0.1 ~ Android 8.1.0）
Android 燒錄方法 (Android Flash eMMC Method)
User Guide
Linux 燒錄方法 (Linux Flash eMMC Method)
Debug 串口調試 (Debug port Setting)
Android系统的基本使用 (Android System Basic Operating Method)
ADB調試方法 (ADB Setting and Operating Method)
- USB ADB使用方法 (ADB Operating Method with USB Connection (OTG port))
- 開啟主板ADB调试功能 (Open ADB Function in Android System)
- 網路ADB使用方法 (ADB Operating Method with Ethernet)
網路與連接 (Network & Connectivity)
- 乙太網路使用方法 (Ethernent Testing Method)
- WiFi使用方法 (WIFI Testing Method)
- 4G使用方法 (4G Testing Method)
- 蓝牙使用方法 (BlueTooth Operating Method)
APK 安裝 (APK installation)
- 常規安裝 (Regular Installation)
- 後台静默安装 (Default Installation)
硬件控制 (Hardware Control)
- GPIO使用方法 (GPIO Operating Method)
- 串口使用方法 (Serial Port Operating Method)
其他 (Others)
- 遠程訪問及文件傳輸 (Remote Access and File Transmission)
通用方法 (General Method)
- 查看CPU温度 (Check CPU Temperature)
- 查看CPU频率 (Check CPU Frequency)
- 查看内存容量 (Check Memory Capacity)
- 查看存储容量 (Check Storage Capacity)
- 網路Ping測試 (Ping Network Testing)
- 設置系統時間保存到芯片 (Setting System time)
