ROM-5780_Android_User_Guide
產品介紹(Product introduction )
產品特性(Product Features)
- Rockchip RK3399 Arm dual Cortex-A72 and quad Cortex-A53 1.8 GHz
- Onboard 2GB LPDDR4 memory and 16GB eMMC
- Support HDMI2.0 4K 60fps, 1x DP, 1x eDP, 1 x LVDS
- Support 4K H.264/H.265 Video decoder
- 2 x USB3.0, 3 x USB2.0,1 x USB2,0 OTG, 3 x UART, 12 x GPIO
- 1 x PCIe2.0, 1 x SATA, 1 x 4-lane MIPI CSI, Gigabit LAN
- Support Debian Linux and Android
產品官網連結(Product official website link)
硬件接口說明(Hardware interface introduction)
接口布局和尺寸(Layout and Sizes)
ROM-5780 接口布局圖 Board Dimension Layout
Board Connectors
The board has one switch that allows you to configure your system.
Connector List
Switch
| Position | Description |
| SW1 | UART & Debug Port selection |
| SW2 | AT & ATX mode selection |
SW1: UART & Debug Port Selection
| Setting | Function |
| SW1(2-3) | Normal UART |
| SW1(2-1) | Debug Console (Default) |
SW2: AT/ATX Mode Selection
| Setting | Function |
| SW2(2-3) | AT Mode (Default) |
| SW2(2-1) | ATX Mode |

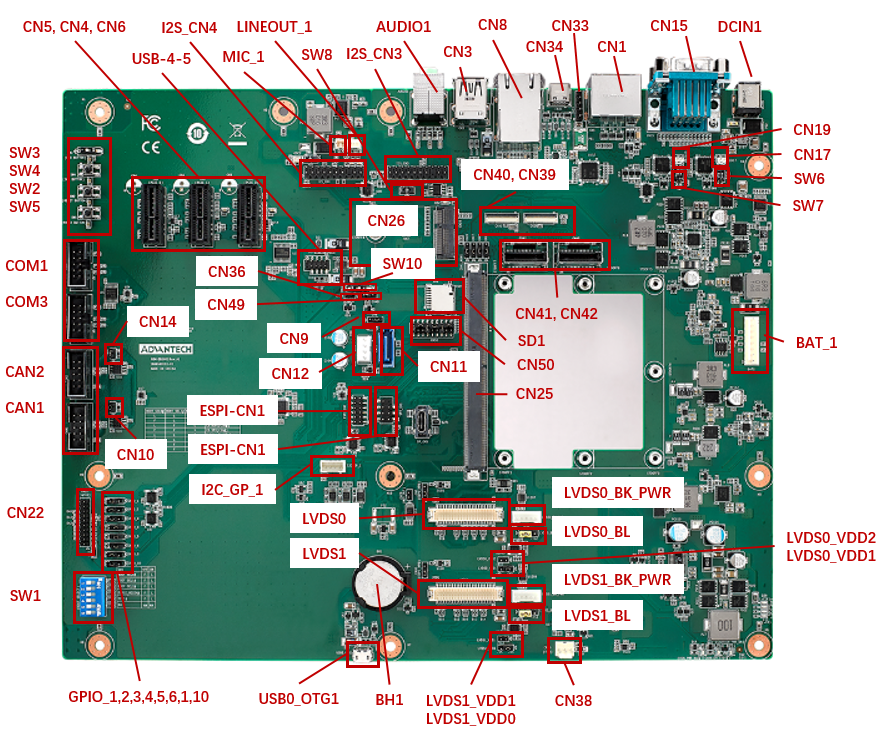

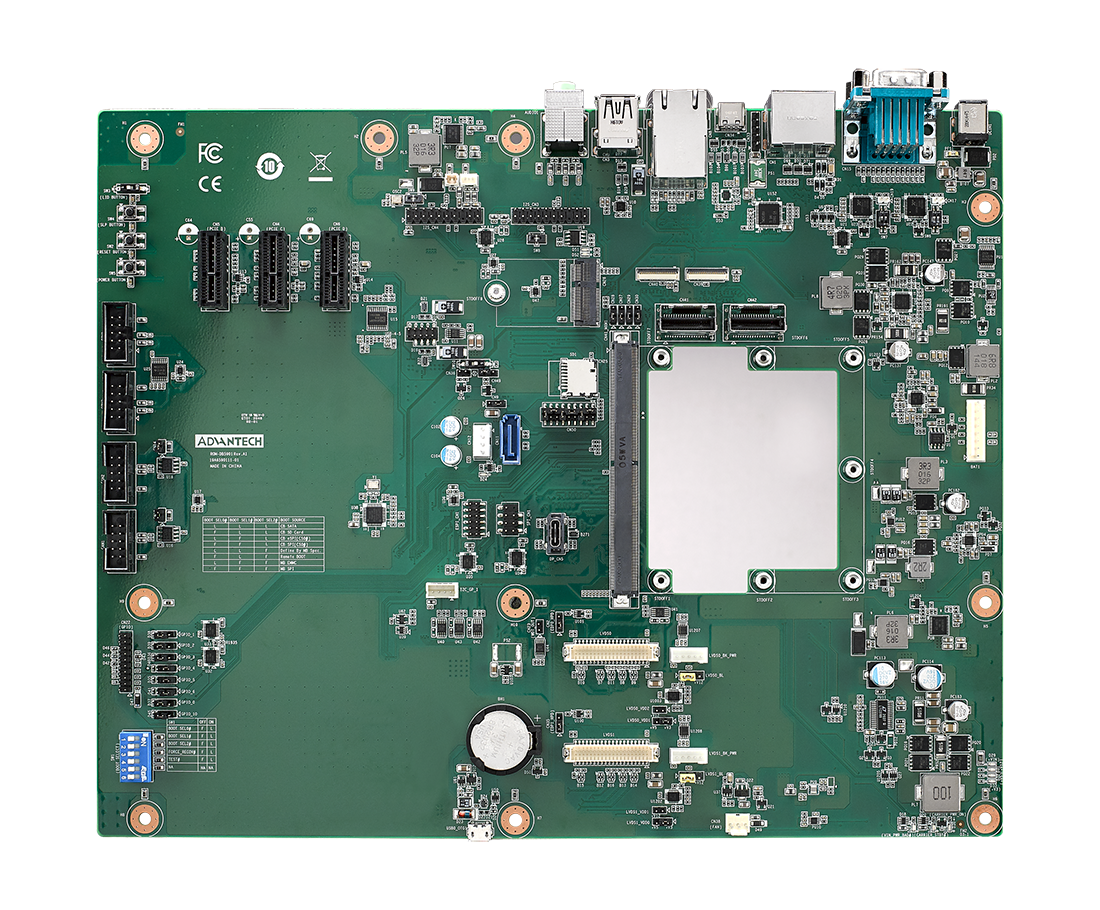

ROM-DB5901-SWA2 接口布局圖 Board Dimension Layout
主板内置插针式引脚排序方式 (Pin Header defination)
Internal I/O
| --- | --- | --- | Position | Description | Connector Type | BAT1 | PIN Header for Battery | WAFER 8P 2.54mm 180D(M) DIP A2543WV2-8P | BH1 | RTC Battery Holder | BATTERY HOLDER 24.9*23.4*8.9 CR2032 BH800.4GG | CAN1 | CANBus Port 1 | BOX HEADER 5x2P 2.54mm 180D(M) DIP 23N6960-10S10 | CAN2 | CANBus Port 2 | BOX HEADER 5x2P 2.54mm 180D(M) DIP 23N6960-10S10 | COM1 | COM Port 1 | BOX HEADER 5x2P 2.54mm 180D(M) DIP 23N6960-10S10 | COM3 | COM Port 3 (Debug Port) | BOX HEADER 5x2P 2.54mm 180D(M) DIP 23N6960-10S10 | CN4 | PCIex1 Connector 1 | PCIEXPRESS 36P 180D(F) DIP 2EG01817-D2D-DF | CN5 | PCIex1 Connector 2 | PCIEXPRESS 36P 180D(F) DIP 2EG01817-D2D-DF | CN6 | PCIex1 Connector 3 | PCIEXPRESS 36P 180D(F) DIP 2EG01817-D2D-DF | CN11 | SATA Connector | Serial ATA 7P 1.27mm 180D(M) DIP WATM-07DBN4A3B8 | CN12 | SATA Power Connector | WAFER 4P 2.5mm 180D(M) DIP 24W1161-04S10-01T | CN22 | GPIOx8 sets | PIN HEADER 10x2P 2.0mm 180D(M) DIP 21N22050 | CN25 | MXM 3.0 Connector | MXM Conn. 314P 90D(F) SMD AS0B821-S78B-7H | CN26 | M.2 Key E Slots | NGFF 75P 0.5mm 90D(F) H=4.2mm SMD AS0BC21-S40BE | CN38 | FAN (Reserved) | WTB Con. 3P 2.54mm 180D(M) DIP A2543WV0-3P-6T-5e | CN39 | MIPI-CSI1 (FPC, 4-Lane | FPC 39P, 0.6mm, H0.9mm | CN40 | MIPI-CSI0 (FPC, 2-Lane) | FPC 39P, 0.6mm, H0.9mm | CN41 | MIPI-CSI0 (Mini-SAS, 2-Lane) | Mini SAS 36P/0.8mm/(M)/LCP/VA/G15u/ S/BK/W | CN42 | MIPI-CSI1 (Mini-SAS, 4-Lane) | Mini SAS 36P/0.8mm/(M)/LCP/VA/G15u/ S/BK/W | ESPI_CN1 | ESPI | PIN HEADER 6x2P 2.0mm180D(M) SMD 21N22050-12M00B | I2C_GP_1 | I2C Pin Header | WAFER BOX 4P 2.00mm 180D(M) DIP 721-81-04TW00 | I2C_CN3 | Audio Codec Board | PIN HEADER 2x10P 2.54mm 180D(M) DIP 21N22564 | LVDS0 | LVDS0 |
Rear I/O
| Position | Description | Name |
| DCIN | DC Jack | A |
| CN15A | UART Port 0 | B |
| CN15B | UART Port 2 | C |
| CN1A | DP Port | D |
| CN1B | HDMI Port | E |
| CN33 | Type C Controller Programming Header (Reserved Only) | F |
| CN34 | USB Type C | G |
| CN8 | GbE Ethernet Connector Port | H |
| CN3 | USB Port 1/ 2 | I |
| Audio1 | MIC Input/ Audio Output | J |
**机械尺寸 (**Mechanical Characteristics)
- Dimensions: SMARC form factor size: (D x W) 82 x 50 mm/ 3.22 x 1.9 in
- Height on Top: Under 3.0 mm base on SPEC definition (without heat sink)
- Height on Bottom: Under 1.3 mm base on SPEC definition
快速入门 (Quick Start)
Android 燒錄方法 (Android Flash eMMC Method)
There are three ways to update images：
[1. Using_storage_USB disk with AndroidTool.](./ROM-5780_Android_User_Guide_wiki_data/1._Using_AndroidTool. "1. Using AndroidTool.".md)
There is no limitation by this way.
[2. Using bootup_sd_disk made_by SDDiskTool.](./ROM-5780_Android_User_Guide_wiki_data/2._Using_bootup_sd_disk_made_by_SDDiskTool. "2. Using bootup sd disk made by SDDiskTool.".md)
（1）Only update images from the same os, eg :
Android6.0 upgrade to Android6.0 or Android7.1 upgrade to Android7.1.
（2）Using update.img to upgrade.
通用方法(General Method)
乙太網路使用方法(Ethernent Testing Method)
Command : ifconfig
console:/ # ifconfig
lo Link encap:Local Loopback
inet addr:127.0.0.1 Mask:255.0.0.0
inet6 addr: ::1/128 Scope: Host
UP LOOPBACK RUNNING MTU:65536 Metric:1
RX packets:0 errors:0 dropped:0 overruns:0 frame:0
TX packets:0 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:0 TX bytes:0
eth0 Link encap:Ethernet HWaddr 82:86:01:8c:e0:13 Driver rk_gmac-dwmac
inet addr:172.21.170.44 Bcast:172.21.171.255 Mask:255.255.254.0
inet6 addr: fe80::49d8:3769:8043:9181/64 Scope: Link
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:26 errors:0 dropped:0 overruns:0 frame:0
TX packets:19 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:1000
RX bytes:3701 TX bytes:2021
Interrupt:27
console:/ #
Command : ping 172.21.170.44
console:/ # ping 172.21.170.44
PING 172.21.170.44 (172.21.170.44) 56(84) bytes of data.
64 bytes from 172.21.170.44: icmp_seq=1 ttl=64 time=0.136 ms
64 bytes from 172.21.170.44: icmp_seq=2 ttl=64 time=0.273 ms
64 bytes from 172.21.170.44: icmp_seq=3 ttl=64 time=0.276 ms
64 bytes from 172.21.170.44: icmp_seq=4 ttl=64 time=0.273 ms
64 bytes from 172.21.170.44: icmp_seq=5 ttl=64 time=0.336 ms
^C
--- 172.21.170.44 ping statistics ---
5 packets transmitted, 5 received, 0% packet loss, time 4076ms
rtt min/avg/max/mdev = 0.136/0.258/0.336/0.069 ms
console:/ #
查看CPU温度(Check CPU Temperature)
console:/ # cat /sys/devices/virtual/thermal/thermal_zone0/temp
60000
console:/ # echo $[$(cat /sys/class/thermal/thermal_zone0/temp)/1000]
$[60000/1000]
查看CPU频率(Check CPU Frequency)
console:/ # cat /sys//devices/system/cpu/cpu0/cpufreq/cpuinfo_cur_freq
408000
console:/ # cat /sys//devices/system/cpu/cpu0/cpufreq/cpuinfo_max_freq
1416000
查看内存容量（Check Memory Capacity)
console:/ # busybox free -m
total used free shared buffers
Mem: 3840 1312 2528 76 8
-/+ buffers: 1304 2536
Swap: 1920 0 1920
查看存储容量(Check Storage Capacity)
console:/ # df -h
Filesystem Size Used Avail Use% Mounted on
tmpfs 1.8G 616K 1.8G 1% /dev
tmpfs 1.8G 0 1.8G 0% /mnt
tmpfs 1.8G 0 1.8G 0% /apex
/dev/block/mmcblk1p12 11M 80K 11M 1% /metadata
/dev/block/dm-0 879M 877M 2.6M 100% /
/dev/block/dm-1 236M 236M 744K 100% /vendor
/dev/block/dm-3 520K 512K 8.0K 99% /odm
/dev/block/dm-2 277M 276M 872K 100% /product
/dev/block/mmcblk1p11 356M 312K 356M 1% /cache
/dev/block/mmcblk1p15 25G 64M 25G 1% /data
/data/media 25G 64M 25G 1% /mnt/runtime/default/emulated
