ROM-5880_Debian_User_Guide

产品特性(Features)

• Rockchip RK3568 Arm Quad Cortex-A55 up to 2.0GHz
• Onboard 2/4GB LPDDR4 memory and 16/32GB eMMC
• Support 1 x HDMI2.0 4K, 1 x signal LVDS or 1 x MIPI DSI
• Support 4K H.264/H.265 Video decoder
• 2 x USB3.0, 2 x USB2.0, 4 x UART, 14 x GPIO
• 2 x PCIe3.0, 1 x SATA, 1 x MIPI CSI, 2 x Gigabit LAN
• Support Linux & Android

产品官网链接（Product official website link）

ROM-5880 - 基于瑞芯微RK3568平台的SMARC2.1核心模块 - 研华 (advantech.com.cn)

接口布局和尺寸（Layout and Sizes）

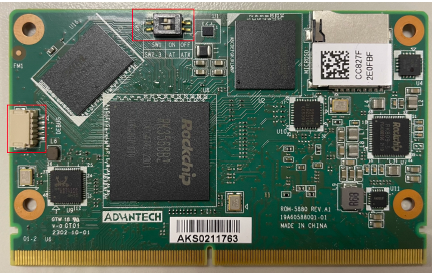

ROM-5880接口布局图 Board Dimension Layout

Connector List

Debug

Position	Description
DEBUG	DEBUG Port

Switch

Position	Description
SW1	AT&ATX mode selection

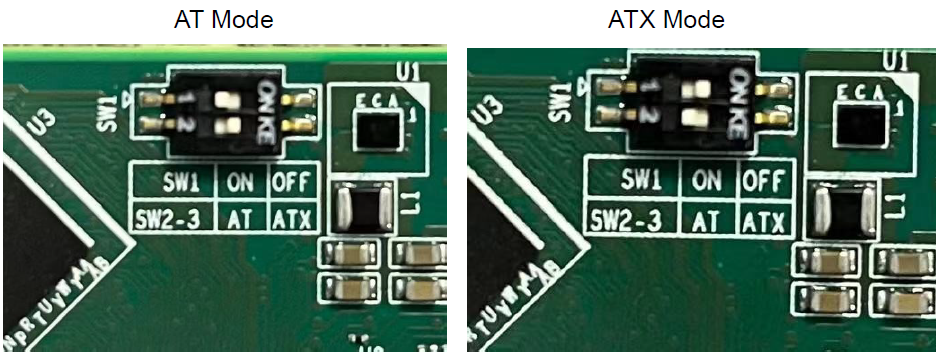

SW1：AT/ATX Mode Selection

Setting	Function
1 off  2 on	AT Mode（Default）
1 on 2 off	ATX Mode

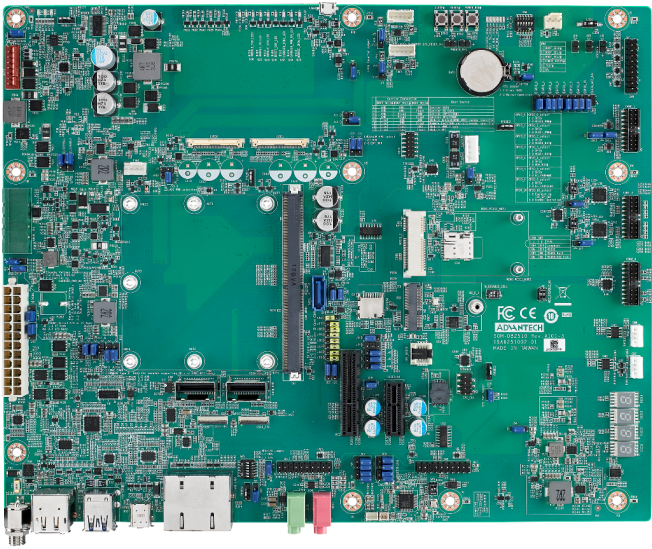

SOM-DB2510 A1 Board Dimension Layout

The figures below indicate the main chips on SOM-DB2510 Development Board for  SMARC 2.1.

SOM-DB2510 Connectors and Jumper Settings

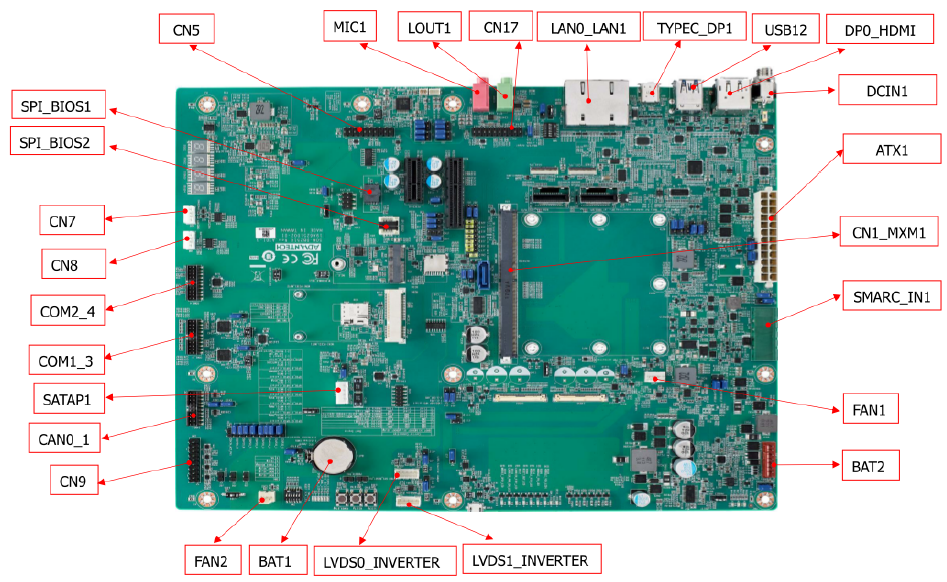

Connector Locations

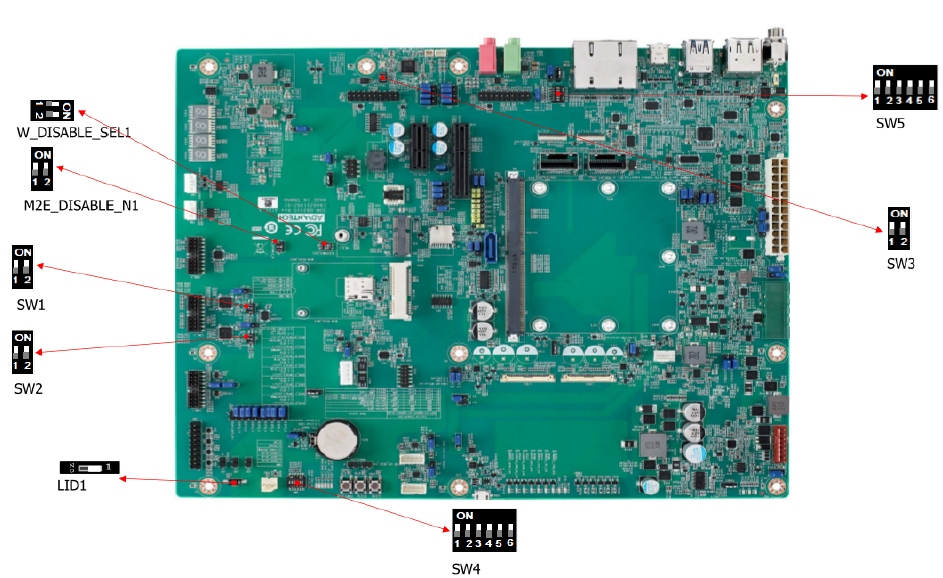

Switch Locations

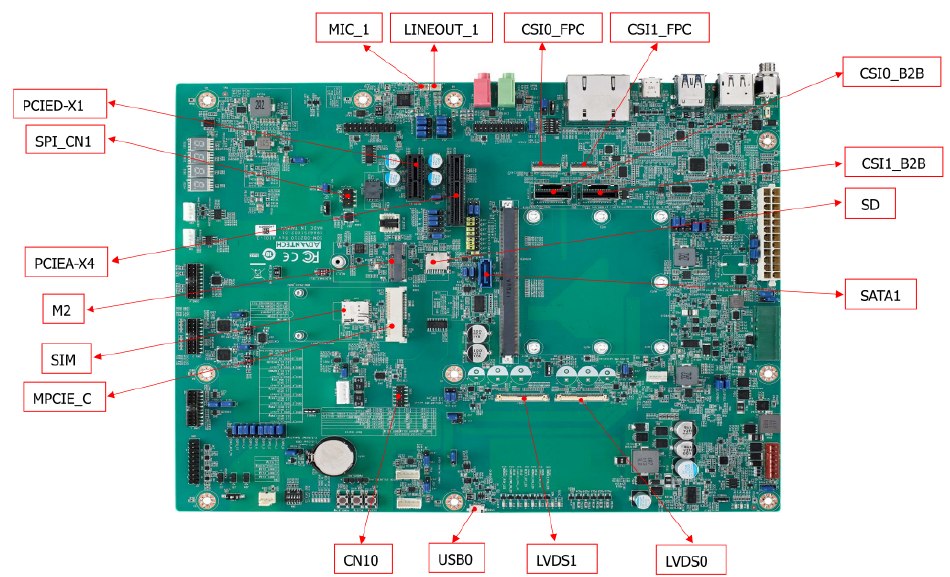

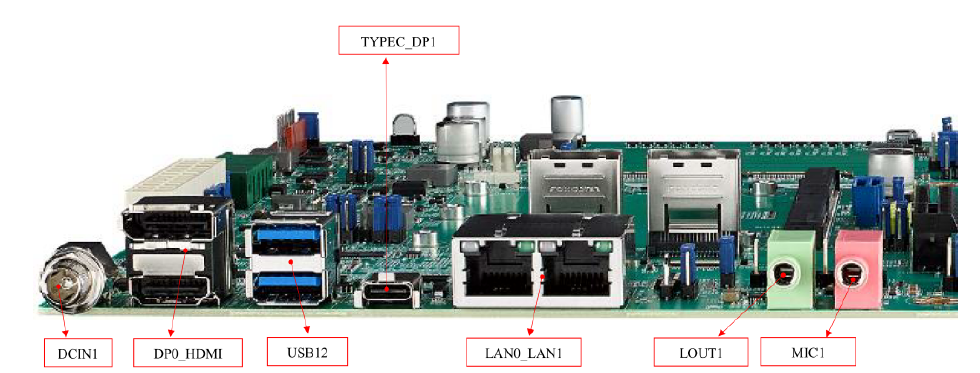

I/O Connctor Locations

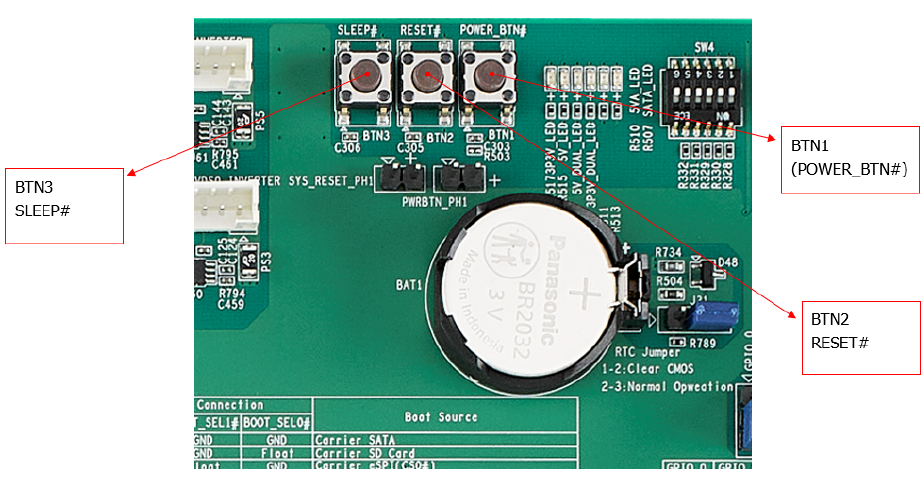

Button Locations

LED Locations

Label	Function	Label	Function
ATX1	ATX Connector	FAN1	Smart Fan Connector
SMARC_IN1	Wide Range Input Power Connector (3V~5.25V)	FAN2	System Fan Connector
DCIN1	DCIN connector	CAN0_1	CAN Bus Connector
DP0_HDMI	DP & HDMI Connector	USB0	USB OTG Connector
USB12	USB 2.0 port1~2 & USB 3.0 port0 Connector	COM1_3	COM Port Port1,3 Connector
TYPEC_DP1	Type-C Connector	COM2_4	COM Port Port2,4 Connector
LAN0_LAN1	LAN0 & LAN1 Connector	CN8	I2C connector for I2C_PM
LOUT1	Line Out Connector	CN7	I2C Connector for I2C_GP
MIC1	MIC1 Connector	CN10	eSPI Pin Header
CN1_MXM1	SMARC Connector	SATAP1	SATA Power Connector
PCIEA-X4	PCIe x4 Connector	CSI0_B2B	MIPI B2B Connector for 2M Camera
SATA1	SATA Port0 Connector	CSI1_B2B	MIPI B2B Connector for 8M & 13M Camera
PCIED-X1	PCIe x1 Connector	SPI_BIOS1	Carrier Board BIOS Socket (SOIC)
M2	M.2 Key-E Connector	BAT1	Coin battery holder
MPCIE_C	Mini PCIe Connector	BAT2	Smart battery Connector
SIM	SIM card Connector	LINEOUT_1	I2S Headphone Connector
LVDS1	LVDS1 Connector	MIC_1	I2S MIC In Connector
LVDS0	LVDS0 Connector	CSI1_FPC	MIPI FPC Connector for 8M & 13M Camera
LVDS1_INVERTER	LVDS1 Invertor Connector	CSI0_FPC	MIPI FPC Connector for 2M Camera
LVDS0_INVERTER	LVDS0 Invertor Connector	CN5	I2S2 Connector
SPI_BIOS2	Carrier Board BIOS Socket (QFN)	CN17	I2S0 Connector
SD	SD Card Connector

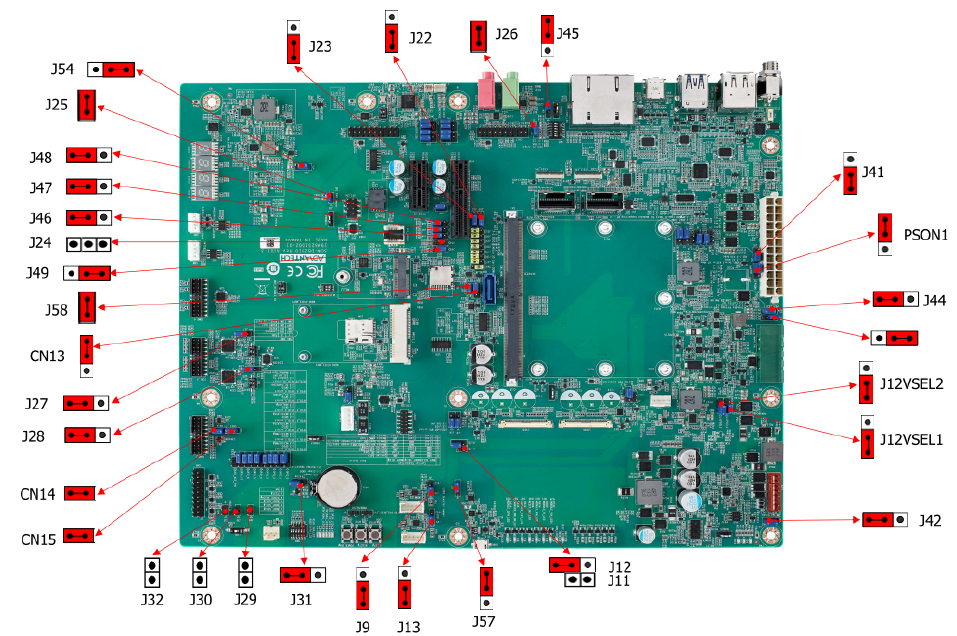

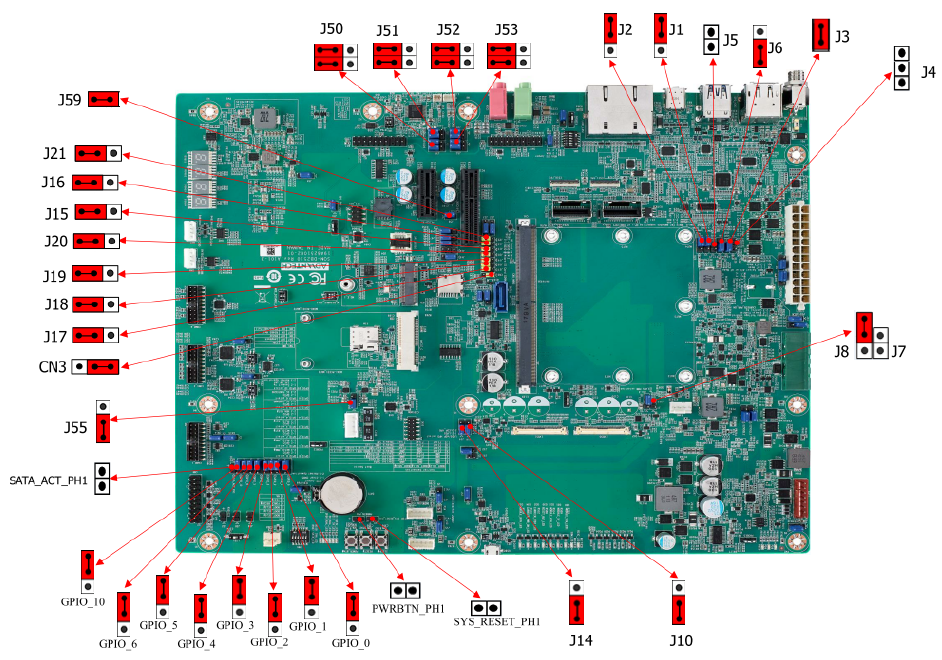

Jumper Locations

Lable	Function	Lable	Function
BTN3	Sleep Button	J14	EDP1/LVDS1 Hot-Plug Detect Selection Header
BTN1	Power Button	J56	Standby Voltage Control Header
BTN2	Reset Button	J44	Module +3.3V/+5V Power Selection Header
SW4	BOOT SELECT Switch	PSON1	AT/ATX Selection Header
LID1	LID Switch	SPI_CN1	SPI Header
J30	Enable Battery Low# Header	CN14	For CAN Bus port0 Terminal Resistor
M2E_DISABLE_N1	M.2 Wireless Disable	CN15	For CAN Bus port1 Terminal Resistor
J29	SMB Alert Enable Header	J3/J4	DP0 EQ0 Selection
CN9	Header For GPIO Test	J5/J6	DP0 EQ1 Selection
J7/J8	LVDS0 Power Selection Header	J58	PCIE_B_CKREQ# Selection
J11/J12	LVDS1 Power Selection Header	J59	PCIE_A_CKREQ# Selection
J9	LVDS0 Inverter Power Selection Heade	GPIO_0	GPIO0/CAM0_PWR# Selection
J10	EDP0/LVDS0 Hot-Plug Detect Selection Header	GPIO_1	GPIO1/CAM1_PWR# Selection
J26	HDA/I2S Selection Header	GPIO_2	GPIO2/CAM0_RST# Selection
J1	DP1/HDMI1 Select	GPIO_3	GPIO3/CAM1_RST# Selection
J13	LVDS1 Inverter Power Selection Header	GPIO_4	GPIO4/HDA_RST# Selection
J31	Clear CMOS Header	GPIO_5	GPIO5/PWM_OUT Selection
J25	SPI Power Header	GPIO_6	GPIO6/TACHIN Selection
SW1	COM1 mode Select	SATA_ACT_PH1	SATA act# Header
SW2	COM3 mode Select	PWRBTN_PH1	Power button Header
J41	Core Power Voltage Control Header	SYS_RESET_PH1	Reset button Header
J2	DDI1 AUX/DDC Selection

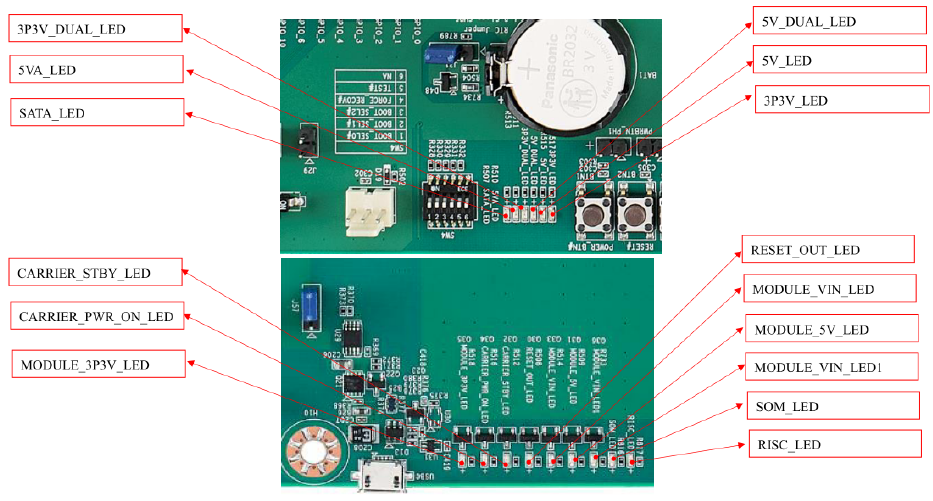

LED Function List

Location	Function
MODULE_VIN_LED1	WDT_TIME_OUT# Indicate
MODULE_5V_LED	Module 5V Indicate
MODULE_VIN_LED	Module +V_MOD_IN Indicate
RESET_OUT_LED	RESET_OUT Indicate
RESET_OUT_LED	CARRIER_STBY Indicate
CARRIER_PWR_ON_LED	CARRIER_PWR_ON Indicate
MODULE_3P3V_LED	Module 3.3V Indicate
3P3V_LED	Carrier Board +V3.3 Indicate
5V_LED	Carrier Board +V5 Indicate
5V_DUAL_LED	Carrier Board +V5SB Indicate
3P3V_DUAL_LED	Carrier Board +V3.3SB Indicate
5VA_LED	Carrier Board +V5D_MOD Indicate
SATA_LED	SATA Indicate
SOM_LED	SOM BOM Indicate
RISC_LED	RISC BOM Indicate

Switch Settings

• [SW4](./ROM-5880_Debian_User_Guide_wiki_data/SW4 "SW4".md) (Boot Select/Force Recovery/Test Switches)
• [LID1](./ROM-5880_Debian_User_Guide_wiki_data/LID1 "LID1".md) (LID Button Enable/Disable Switches)
• [SW5](./ROM-5880_Debian_User_Guide_wiki_data/SW5 "SW5".md) (LAN CONN LED Pull High Switches)
• [SW1](./ROM-5880_Debian_User_Guide_wiki_data/COM0_Settings "COM0 Settings".md)(COM0 Settings)
• [SW2](./ROM-5880_Debian_User_Guide_wiki_data/SW2 "SW2".md)(COM2 Settings)
• [SW3](./ROM-5880_Debian_User_Guide_wiki_data/I2S_Clock_Settings "I2S Clock Settings".md)(I2S Clock Settings)
• [M2E_DISABLE_N1](./ROM-5880_Debian_User_Guide_wiki_data/M2E_DISABLE_N1 "M2E DISABLE N1".md)(M.2 Wireless Disable Switch)

接口引脚定義 (Connector Pin definitions)

• [ATX1 Pin Connector](./ROM-5880_Debian_User_Guide_wiki_data/ATX1_Pin_Connector "ATX1 Pin Connector".md)
• [SMARC_IN1 Pin Connectors](./ROM-5880_Debian_User_Guide_wiki_data/SMARC_IN1_Pin_Connectors "SMARC IN1 Pin Connectors".md)
• [BAT1 RTC Battery Connectors](./ROM-5880_Debian_User_Guide_wiki_data/BAT1_RTC_Battery_Connectors "BAT1 RTC Battery Connectors".md)
• [DCIN1 DC-IN Power Connectors](./ROM-5880_Debian_User_Guide_wiki_data/DCIN1_DC-IN_Power_Connectors "DCIN1 DC-IN Power Connectors".md)
• [CAN0_1 CAN Bus Connectors](./ROM-5880_Debian_User_Guide_wiki_data/CAN0_1_CAN_Bus_Connectors "CAN0 1 CAN Bus Connectors".md)
• [CN9 GPIO Headers](./ROM-5880_Debian_User_Guide_wiki_data/CN9_GPIO_Headers "CN9 GPIO Headers".md)
• [COM2_4 COM Port2&4 Connectors](./ROM-5880_Debian_User_Guide_wiki_data/COM2_4_COM_Port2&4_Connectors "COM2 4 COM Port2&4 Connectors".md)
• [COM1_3 COM Port1& 3 Connectors](./ROM-5880_Debian_User_Guide_wiki_data/COM1_3_COM_Port1&_3_Connectors "COM1 3 COM Port1& 3 Connectors".md)
• [CN10 ESPI Headers](./ROM-5880_Debian_User_Guide_wiki_data/CN10_ESPI_Headers "CN10 ESPI Headers".md)
• [LVDS0 LVDS Connectors](./ROM-5880_Debian_User_Guide_wiki_data/LVDS0_LVDS_Connectors "LVDS0 LVDS Connectors".md)
• [LVDS0_INVERTER LVDS INVERTER Connectors](./ROM-5880_Debian_User_Guide_wiki_data/LVDS0_INVERTER_LVDS_INVERTER_Connectors "LVDS0 INVERTER LVDS INVERTER Connectors".md)
• [LVDS1 LVDS Connectors](./ROM-5880_Debian_User_Guide_wiki_data/LVDS1_LVDS_Connectors "LVDS1 LVDS Connectors".md)
• [LVDS1_INVERTER LVDS INVERTER Connectors](./ROM-5880_Debian_User_Guide_wiki_data/LVDS1_INVERTER_LVDS_INVERTER_Connectors "LVDS1 INVERTER LVDS INVERTER Connectors".md)
• [CN7 I2C_GP Connectors](./ROM-5880_Debian_User_Guide_wiki_data/CN7_I2C_GP_Connectors "CN7 I2C GP Connectors".md)
• [SPI_CN1 SPI Connectors](./ROM-5880_Debian_User_Guide_wiki_data/SPI_CN1_SPI_Connectors "SPI CN1 SPI Connectors".md)
• [SATAP1 SATA PWR Connectors](./ROM-5880_Debian_User_Guide_wiki_data/SATAP1_SATA_PWR_Connectors "SATAP1 SATA PWR Connectors".md)
• [CSI0_FPC Connectors](./ROM-5880_Debian_User_Guide_wiki_data/CSI0_FPC_Connectors "CSI0 FPC Connectors".md)
• [CSI1_FPC Connectors](./ROM-5880_Debian_User_Guide_wiki_data/CSI1_FPC_Connectors "CSI1 FPC Connectors".md)
• [CN5 I2S2 Connectors](./ROM-5880_Debian_User_Guide_wiki_data/CN5_I2S2_Connectors "CN5 I2S2 Connectors".md)
• [CN17 I2S0 Connectors](./ROM-5880_Debian_User_Guide_wiki_data/CN17_I2S0_Connectors "CN17 I2S0 Connectors".md)
• [PWRBTN_PH1 PWRBTN Pin Headers](./ROM-5880_Debian_User_Guide_wiki_data/PWRBTN_PH1_PWRBTN_Pin_Headers "PWRBTN PH1 PWRBTN Pin Headers".md)
• [SYS_RESET_PH1 SYS RESET Pin Headers](./ROM-5880_Debian_User_Guide_wiki_data/SYS_RESET_PH1_SYS_RESET_Pin_Headers "SYS RESET PH1 SYS RESET Pin Headers".md)
• [SATA_ACT_PH1 SATA ACT# Pin Headers](./ROM-5880_Debian_User_Guide_wiki_data/SATA_ACT_PH1_SATA_ACT "SATA ACT PH1 SATA ACT".md)
• [J32 Power LED Pin Headers](./ROM-5880_Debian_User_Guide_wiki_data/J32_Power_LED_Pin_Headers "J32 Power LED Pin Headers".md)
• [J30 BATLOW Pin Headers](./ROM-5880_Debian_User_Guide_wiki_data/J30_BATLOW_Pin_Headers "J30 BATLOW Pin Headers".md)
• [J29 SMBUS Alert Pin Headers](./ROM-5880_Debian_User_Guide_wiki_data/J29_SMBUS_Alert_Pin_Headers "J29 SMBUS Alert Pin Headers".md)
• [J41 Core Power Controls](./ROM-5880_Debian_User_Guide_wiki_data/J41_Core_Power_Controls "J41 Core Power Controls".md)
• [PSON1 ATX/AT Mode Selection](./ROM-5880_Debian_User_Guide_wiki_data/PSON1_ATX/AT_Mode_Selection "PSON1 ATX/AT Mode Selection".md)
• [J56 Standby Power Controls](./ROM-5880_Debian_User_Guide_wiki_data/J56_Standby_Power_Controls "J56 Standby Power Controls".md)
• [J44 Module Power Settings](./ROM-5880_Debian_User_Guide_wiki_data/J44_Module_Power_Settings "J44 Module Power Settings".md)
• [J7,J8 LVDS0 Power Selection](./ROM-5880_Debian_User_Guide_wiki_data/J7,J8_LVDS0_Power_Selection "J7,J8 LVDS0 Power Selection".md)
• [J9 LVDS0 Inverter Power Selection](./ROM-5880_Debian_User_Guide_wiki_data/J9_LVDS0_Inverter_Power_Selection "J9 LVDS0 Inverter Power Selection".md)
• [J11,J12 LVDS1 Power Selection](./ROM-5880_Debian_User_Guide_wiki_data/J11,J12_LVDS1_Power_Selection "J11,J12 LVDS1 Power Selection".md)
• [LVDS1 Inverter Power Selection](./ROM-5880_Debian_User_Guide_wiki_data/LVDS1_Inverter_Power_Selection "LVDS1 Inverter Power Selection".md)
• [EDP0 /LVDS0 HPD Selection](./ROM-5880_Debian_User_Guide_wiki_data/EDP0_/LVDS0_HPD_Selection "EDP0 /LVDS0 HPD Selection".md)
• [J14 EDP1/LVDS1 HPD Selection](./ROM-5880_Debian_User_Guide_wiki_data/J14_EDP1/LVDS1_HPD_Selection "J14 EDP1/LVDS1 HPD Selection".md)
• [CN14 CAN0 Terminal Resistor Selection](./ROM-5880_Debian_User_Guide_wiki_data/CN14_CAN0_Terminal_Resistor_Selection "CN14 CAN0 Terminal Resistor Selection".md)
• [CN15 CAN1 Terminal Resistor Selection](./ROM-5880_Debian_User_Guide_wiki_data/CN15_CAN1_Terminal_Resistor_Selection "CN15 CAN1 Terminal Resistor Selection".md)
• [J2 DDI1 AUX/DDC Selection](./ROM-5880_Debian_User_Guide_wiki_data/J2_DDI1_AUX/DDC_Selection "J2 DDI1 AUX/DDC Selection".md)
• [J1 DP1/HDMI1 Selection](./ROM-5880_Debian_User_Guide_wiki_data/J1_DP1/HDMI1_Selection "J1 DP1/HDMI1 Selection".md)
• [J58 PCIE_B_CKREQ# Selection](./ROM-5880_Debian_User_Guide_wiki_data/J58_PCIE_B_CKREQ "J58 PCIE B CKREQ".md)
• [J59 PCIE_A_CKREQ# Selection](./ROM-5880_Debian_User_Guide_wiki_data/J59_PCIE_A_CKREQ "J59 PCIE A CKREQ".md)
• [J31 Clear CMOS](./ROM-5880_Debian_User_Guide_wiki_data/J31_Clear_CMOS "J31 Clear CMOS".md)
• [J25 +V1.8M_SPI Power Jumpers](./ROM-5880_Debian_User_Guide_wiki_data/J25_+V1.8M_SPI_Power_Jumpers "J25 +V1.8M SPI Power Jumpers".md)
• [GPIO_0 GPIO0 Settings](./ROM-5880_Debian_User_Guide_wiki_data/GPIO_0_GPIO0_Settings "GPIO 0 GPIO0 Settings".md)
• [GPIO_1 GPIO1 Settings](./ROM-5880_Debian_User_Guide_wiki_data/GPIO_1_GPIO1_Settings "GPIO 1 GPIO1 Settings".md)
• [GPIO_2 GPIO2 Settings](./ROM-5880_Debian_User_Guide_wiki_data/GPIO_2_GPIO2_Settings "GPIO 2 GPIO2 Settings".md)
• [GPIO_3 GPIO3 Settings](./ROM-5880_Debian_User_Guide_wiki_data/GPIO_3_GPIO3_Settings "GPIO 3 GPIO3 Settings".md)
• [GPIO_4 GPIO4 Settings](./ROM-5880_Debian_User_Guide_wiki_data/GPIO_4_GPIO4_Settings "GPIO 4 GPIO4 Settings".md)
• [GPIO_5 GPIO5 Settings](./ROM-5880_Debian_User_Guide_wiki_data/GPIO_5_GPIO5_Settings "GPIO 5 GPIO5 Settings".md)
• [GPIO_6 GPIO6 Settings](./ROM-5880_Debian_User_Guide_wiki_data/GPIO_6_GPIO6_Settings "GPIO 6 GPIO6 Settings".md)
• [J26 HDA/I2S Selection](./ROM-5880_Debian_User_Guide_wiki_data/J26_HDA/I2S_Selection "J26 HDA/I2S Selection".md)

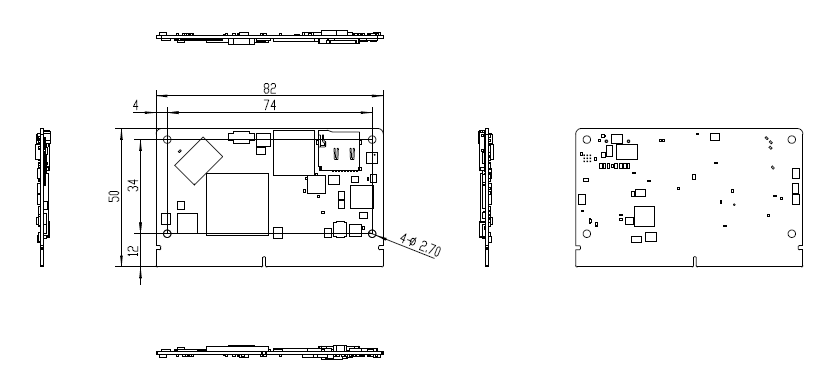

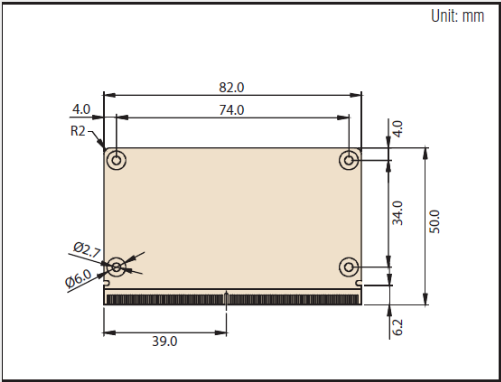

ROM-5880 机械尺寸（Mechanical Characteristics）

• Dimension: SMARC form factor size: (D x W) 82 x 50 mm/3.22 x 1.9 in

• Height on top: Under 3.0 mm
• Height on bottom: Under 2.0 mm

**SOM-DB2510_A1 机械尺寸 (**Mechanical Characteristics)

For more details regarding our 2D/3D models, please visit the Advantech COM support  service website at: <http://com.advantech.com.

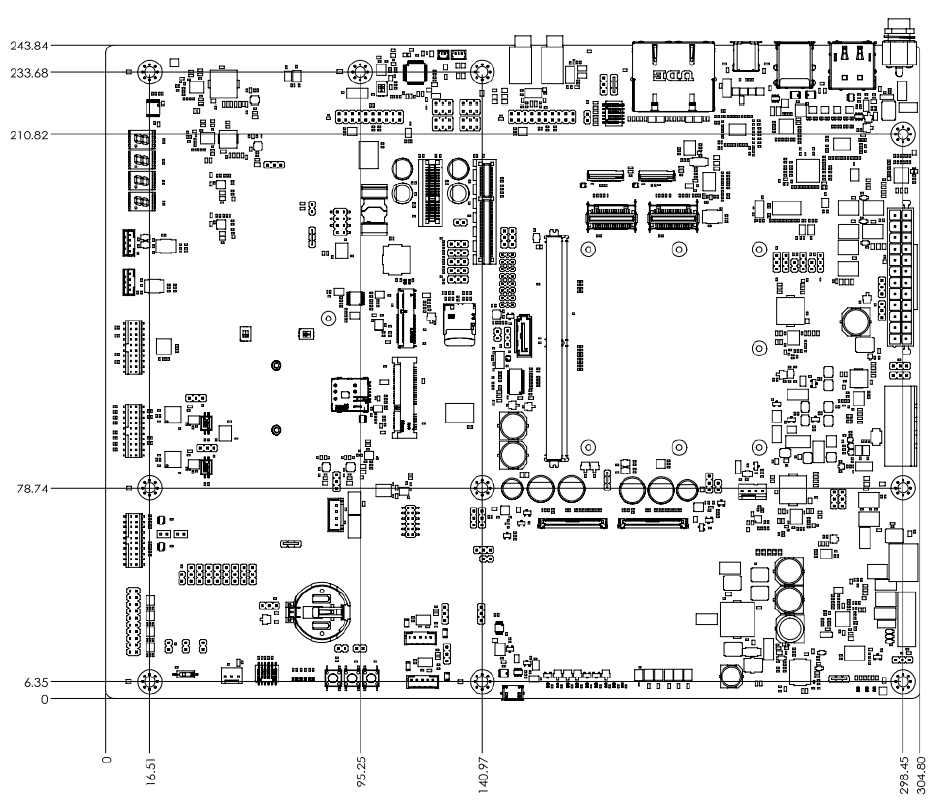

Board Mechanical Diagram -Front

Board Mechanical Diagram -Side1

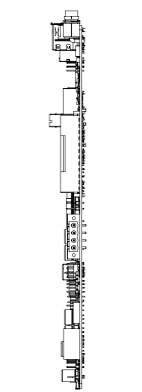

Board Mechanical Diagram -Side2

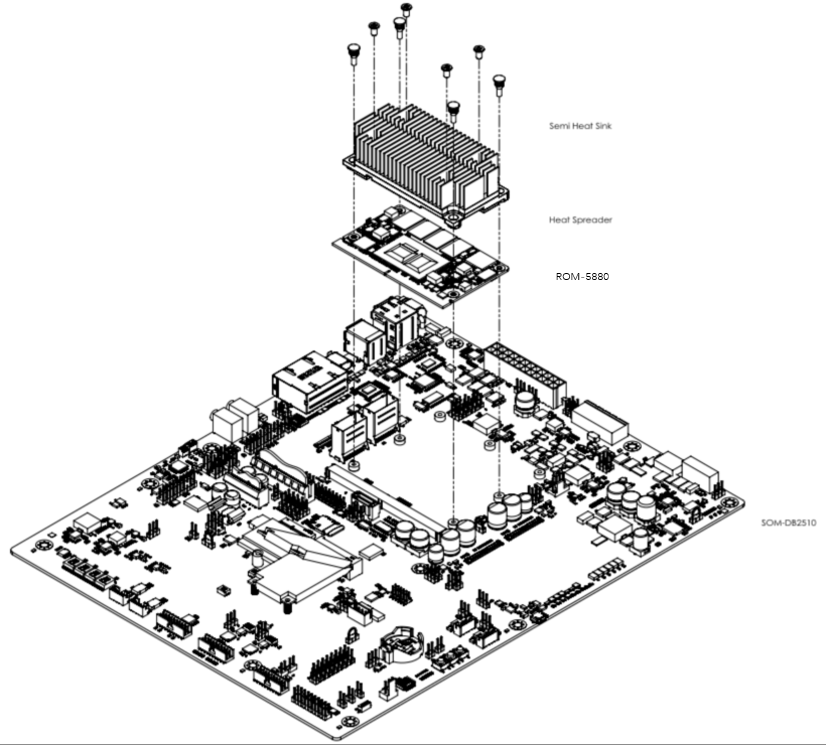

Assemblly Diagram

These figures demonstrate the order of assembly needed when attaching the thermal  module and COM module to the carrier board.

快速入门 (Quick Start)

系统下载 (OS Download)

Note: LIV= Yocto Linux , UIV=Ubuntu , DIV = Debian , AIV = Android, LBV=BSP , LIV= Image

See more details :

NamingRule

Introduction of Released Image

Product	Image Version	Release Date	Release Version	Release notes	Image Download	BSP Download Tag	SDK	Comment	Test Report
ROM-5880	DIV130331	2024/08/16	Beta	[Release_Note](./ROM-5880_Debian_User_Guide_wiki_data/ROM-5880_Debian11_Release_Notes "ROM-5880 Debian11 Release Notes".md)	Baidu Password：a887 Dropbox	RK3568_RISC_DIV130331.xml	Baidu Password：a887 Dropbox		[Test Report](./img_ROM-5880/ROM5880A1AIM20DIV130331_2024-08-16_test_report.xlsx "ROM5880A1AIM20DIV130331 2024-08-16 test report.xlsx".md)

• Alpha: Basic I/O function bring up by RD;

• Beta: Basic I/O function、performance and middleware verified by RD. Peripherals integrated;

• GA: Beta version by QE verification;

• RTM: Beta version by SI/Power/QE verification and pre-loaded;

Debian 燒錄方法 (Debiand Flash eMMC Method)

1.  [Usering_RKTool.](./ROM-5880_Debian_User_Guide_wiki_data/1.Usering_RKTool. "1.Usering RKTool.".md)

2.  [Usering bootup_sd_disk made_by SDDiskTool.](./ROM-5880_Debian_User_Guide_wiki_data/Using_bootup_sd_disk_made_by_SDDiskTool_for_ROM-5880 "Using bootup sd disk made by SDDiskTool for ROM-5880".md)

3.  [Upgrade with system command.](./ROM-5880_Debian_User_Guide_wiki_data/Upgrade_with_system_command_for_ROM-5880 "Upgrade with system command for ROM-5880".md)

Linux基本使用方法

• [Getting Start](./ROM-5880_Debian_User_Guide_wiki_data/Getting_Start（ROM-5880） "Getting Start（ROM-5880）".md)
• [QT_ToolsChain](./ROM-5880_Debian_User_Guide_wiki_data/ROM-5880_QT_ToolsChain "ROM-5880 QT ToolsChain".md)
• [NPU_SDK](./ROM-5880_Debian_User_Guide_wiki_data/ROM-5880_NPU_SDK "ROM-5880 NPU SDK".md)
• MAC_Address

Linux BSP编译方法（Linux BSP Compile Method）

[Linux BSP User Guide for rk3568 series Debian 11](./ROM-5880_Debian_User_Guide_wiki_data/Linux_BSP_User_Guide_for_rk3568_series_Debian_11 "Linux BSP User Guide for rk3568 series Debian 11".md)
