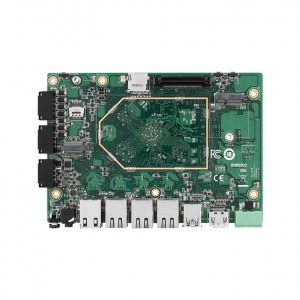

ASR-A501

Rockchip RK3588 Arm Quad Cortex-A76 2.4GHz and Quad Cortex-A55 1.8 GHz
Built-in NPU with processing performance of up to 6 TOPS
Onboard 8/16GB LPDDR4 memory and 64/128GB eMMC
Supports 8K @ 60 fps H.265/VP9 video decoding and 8K @ 30 fps H.265/H.264 video encoding
Supports 2 x PCIE 3.0 x1, 2 x MIPI-CSI, UART, 2 x I2C, 1 x SPI, and 1 x USB by 120-pin B2B connector
Provides 1 x 2.5GbE, 3 x GbE, 2 x USB3.0, 2 x CAN FD, 2 x RS-232/485, 2 x RS-485, 1 x HDMI2.0, 1 x Line out/Mic in
12-24V DC In, contact: 8KV, air: 15KV, ESD protection
Provides a M.2 E Key with PCIE 2.1, USB 2.0 signal and a M.2 B Key with PCIE 2.1/SATA, USB 2.0 signal
Supports Linux Debian12, Android14

Android Support
