ROM-5721 user guide for Win10 IoT core

Contents

• 1資源特性(Features)
• 2訂購資訊(Ordering Information)
• 3接口布局和尺寸(Layout and Sizes) 3.1ROM-5721 接口布局圖 Board Dimension Layout 3.2ROM-DB5901 接口布局圖 Board Dimension Layout 3.3主板内置插针式引脚排序方式 (Pin Header defination) 3.4Internal I/O 3.5Rear I/O 3.6接口引脚定義 (Pin definitions) 3.7机械尺寸  (Mechanical Characteristics)
• 4快速入门 (Quick Start)

資源特性(Features)

• NXP i.MX 8M Mini processor with up to 4 Arm Cortex A53 cores
• 1 x Arm Cortex-M4 core
• Onboard LPDDR4 memory and eMMC
• 1 x 4 lane MIPI-CSI,1 x Dual channel LVDS or 1 x Display Port
• 4 x USB2.0, 1 x USB 2.0 OTG, 4 x UART, 4 x I2C, 12 x GPIO, 1 x PCIe2.0, 1x Gigabit LAN
• Support OpenGL ES 2.0/1.1 by hardware accelerators
• Low power consumption design
• Support Linux and Android BSP

訂購資訊(Ordering Information)

接口布局和尺寸(Layout and Sizes)

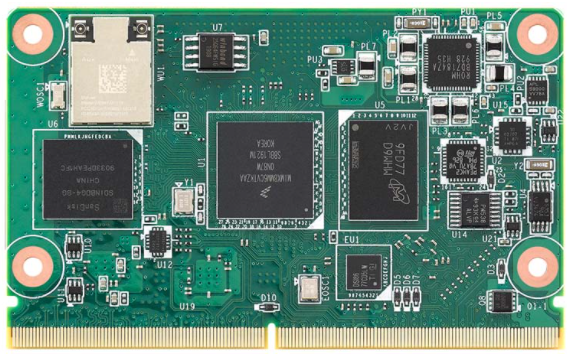

ROM-5721 接口布局圖 Board Dimension Layout

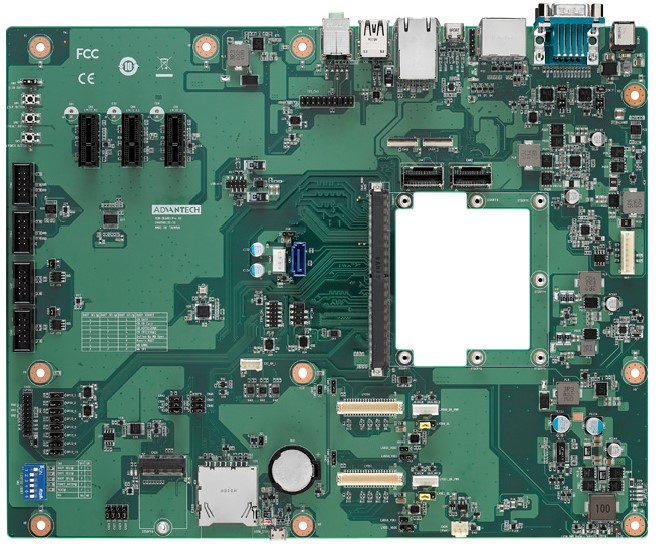

ROM-DB5901 接口布局圖 Board Dimension Layout

主板内置插针式引脚排序方式 (Pin Header defination)

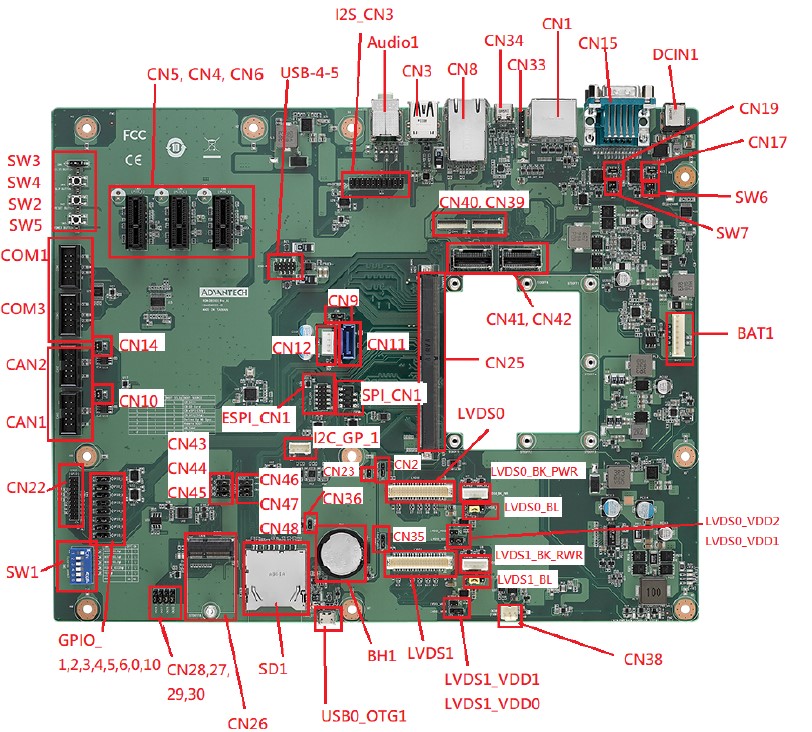

Internal I/O

Position	Description	Connector Type
BAT1	PIN Header for Battery	WAFER 8P 2.54mm 180D(M) DIP A2543WV2-8P
BH1	RTC Battery Holder	BATTERY HOLDER 24.923.48.9 CR2032 BH800.4GG
CAN1	CANBus Port 1	BOX HEADER 5x2P 2.54mm 180D(M) DIP 23N6960-10S10
CAN2	CANBus Port 2	BOX HEADER 5x2P 2.54mm 180D(M) DIP 23N6960-10S10
COM1	COM Port 1	BOX HEADER 5x2P 2.54mm 180D(M) DIP 23N6960-10S10
COM3	COM Port 3 (Debug Port)	BOX HEADER 5x2P 2.54mm 180D(M) DIP 23N6960-10S10
CN4	PCIex1 Connector 1	PCIEXPRESS 36P 180D(F) DIP 2EG01817-D2D-DF
CN5	PCIex1 Connector 2	PCIEXPRESS 36P 180D(F) DIP 2EG01817-D2D-DF
CN6	PCIex1 Connector 3	PCIEXPRESS 36P 180D(F) DIP 2EG01817-D2D-DF
CN11	SATA Connector	Serial ATA 7P 1.27mm 180D(M) DIP WATM-07DBN4A3B8
CN12	SATA Power Connector	WAFER 4P 2.5mm 180D(M) DIP 24W1161-04S10-01T
CN22	GPIOx8 sets	PIN HEADER 10x2P 2.0mm 180D(M) DIP 21N22050
CN25	MXM 3.0 Connector	MXM Conn. 314P 90D(F) SMD AS0B821-S78B-7H
CN26	M.2 Key E Slots	NGFF 75P 0.5mm 90D(F) H=4.2mm SMD AS0BC21-S40BE
CN38	FAN (Reserved)	WTB Con. 3P 2.54mm 180D(M) DIP A2543WV0-3P-6T-5e
CN39	MIPI-CSI1 (FPC, 4-Lane	FPC 39P, 0.6mm, H0.9mm
CN40	MIPI-CSI0 (FPC, 2-Lane)	FPC 39P, 0.6mm, H0.9mm
CN41	MIPI-CSI0 (Mini-SAS, 2-Lane)	Mini SAS 36P/0.8mm/(M)/LCP/VA/G15u/ S/BK/W
CN42	MIPI-CSI1 (Mini-SAS, 4-Lane)	Mini SAS 36P/0.8mm/(M)/LCP/VA/G15u/ S/BK/W
ESPI_CN1	ESPI	PIN HEADER 6x2P 2.0mm180D(M) SMD 21N22050-12M00B
I2C_GP_1	I2C Pin Header	WAFER BOX 4P 2.00mm 180D(M) DIP 721-81-04TW00
I2C_CN3	Audio Codec Board	PIN HEADER 2x10P 2.54mm 180D(M) DIP 21N22564
LVDS0	LVDS0	Wafer 2x20P/1.25mm/(M)/NY9T/VA/GFL/ S/WH/W
LVDS_BK_PWR	LVDS0 Back Light	WAFER BOX 5P 2.0mm 180D(M) DIP A2001WV2-5P
LVDS1	LVDS1	Wafer 2x20P/1.25mm/(M)/NY9T/VA/GFL/ S/WH/W
LVDS1_BK_PWR	LVDS1 Back Light	WAFER BOX 5P 2.0mm 180D(M) DIP A2001WV2-5P
SD1	SD Card Slot	SD CARD 9P 90D(F) SMD WK2192CS3D- 7H
SPI_CN1	SPI Pin Header	PIN HEADER 4x2P 2.54mm 180D(M) SMD 21N22564
SW2	Reset Button	TACT SW STS-091 SMD 4P H=3.8mm
SW4	SLP Button	TACT SW STS-091 SMD 4P H=3.8mm
SW5	Power Button	TACT SW STS-091 SMD 4P H=3.8mm
USB0_OTG1	USB OTG	Micro USB 5P/0.65mm/(F)/NY9T/GFL/ RA/S/BK/B
USB-4-5	USB Port 4, Port 5	PIN HEADER 2x5P 2.0mm 180D(M) SMD 21N22050

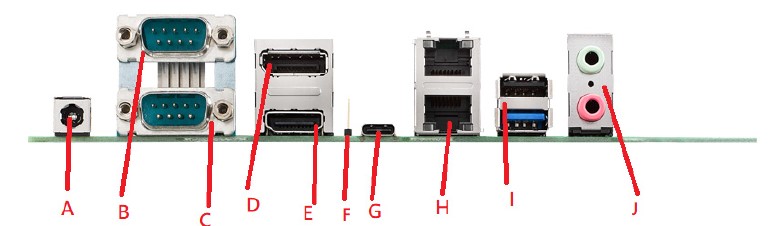

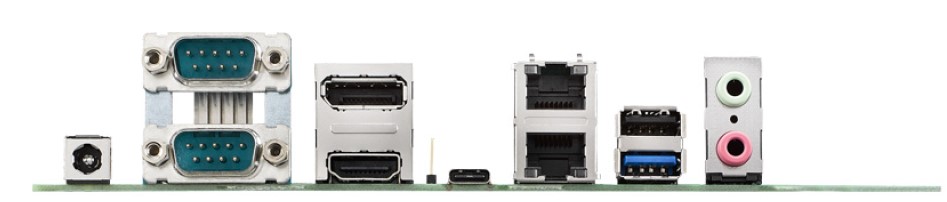

Rear I/O

Position	Description	Name
DCIN	DC Jack	A
CN15A	UART Port 0	B
CN15B	UART Port 2	C
CN1A	DP Port	D
CN1B	HDMI Port	E
CN33	Type C Controller Programming Header (Reserved Only)	F
CN34	USB Type C	G
CN8	GbE Ethernet Connector Port	H
CN3	USB Port 1/ 2	I
Audio1	MIC Input/ Audio Output	J

接口引脚定義 (Pin definitions)

• 電池(BAT1) & 電池扣(BH1)
• CAN(CAN1,CAN2)
• 串口(COM_DB(COM3)、COM1、UART0 、UART2)
• 显示接口(LVDS、LVDS Backlight、HDMI、DP)
• LAN接口(LAN)
• USB接口(USB1-2、USB-4-5、USB Type C、USB OTG)
• 音频接口(Audio Output &Audio Codec)
• 电源及指示灯和开关机复位按钮(Power 、LED、Power Button、Reset Button、Sleep Button)
• GPIO接口
• MINI_PCIE接口_M.2接口_SPI、I2C_接口

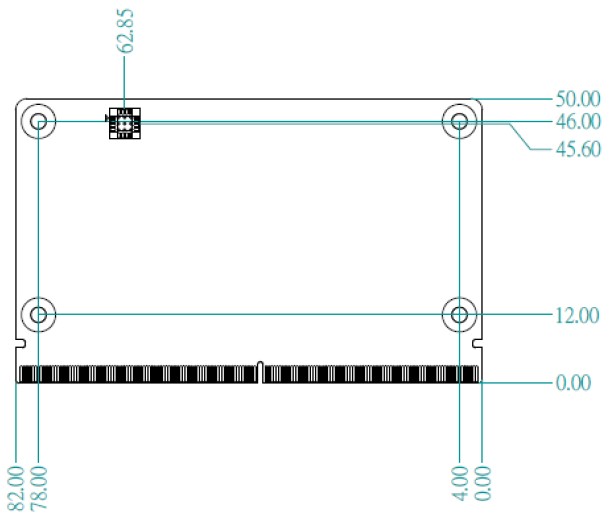

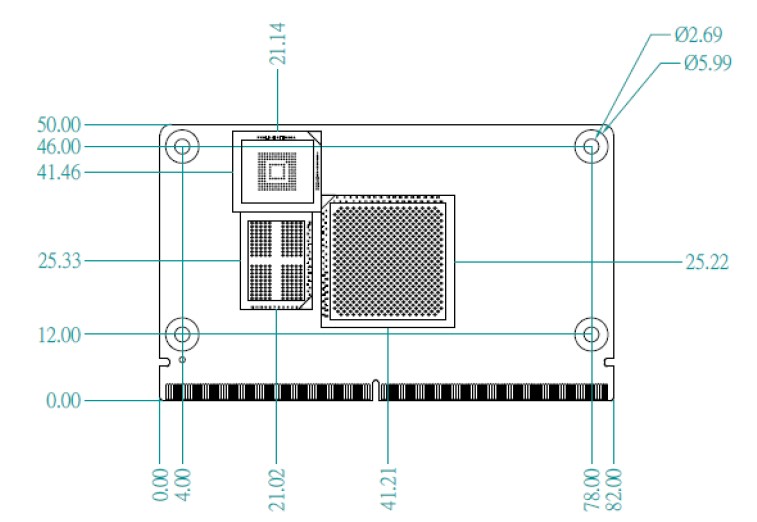

机械尺寸  ( Mechanical Characteristics)

ROM-5721

---

快速入门 (Quick Start)

---
