EPC-R7300 Ubuntu 20.04 User Guide

Introduction​

EPC-R7300 Ubuntu 20.04 User Guide

產品介紹 (Product Introduction)

RTENOTITLE

產品特性 (Product Features)​

  • NVIDIA Jetson Orin™ Nano and NX Module compatible Barebone PC
  • Industrial and Expandable Design
  • HDMI up to 3840 x 2160 at 60Hz resolution
  • Dual GbE LAN, 2 USB3.2 Gen 2
  • 1 Nano SIM Slot
  • 1 M.2 3042/52 Key B Slot, 1 M.2 2230 Key E Slot, 1 M.2 2280 Key M Slot
  • 4 Kinds of Rear I/O for Each Vertical Focus: IEM, Self Service, Automation and Networking

EPC-R7300

硬件接口說明 (Hardware Interface Introduction)

EPC-R7300 接口布局圖 Board Dimension Layout​

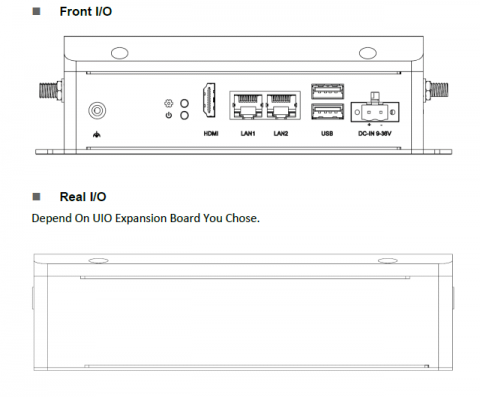

EPC-R7300 Front Real IO.png

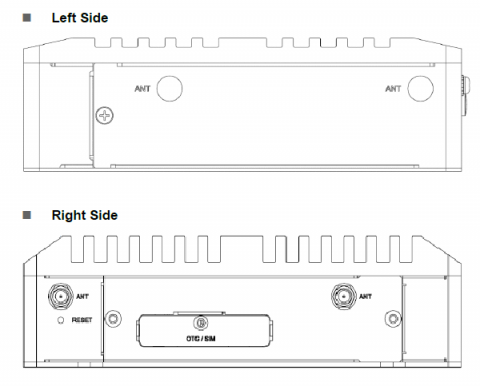

EPC-R7300 Left Right side.png

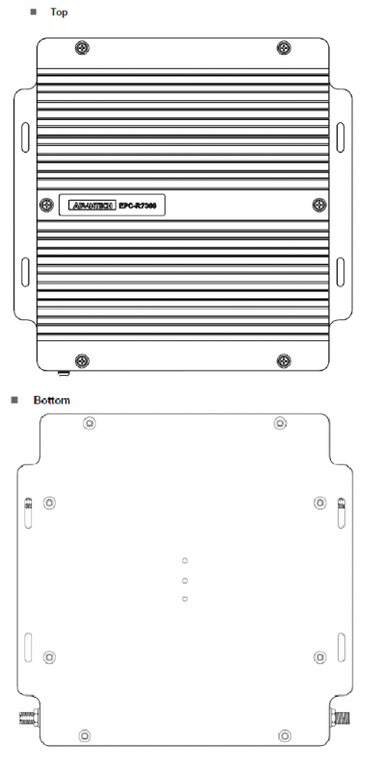

EPC-R7300 Top Bottom.png

接口引脚定義 (Pin Definition)​

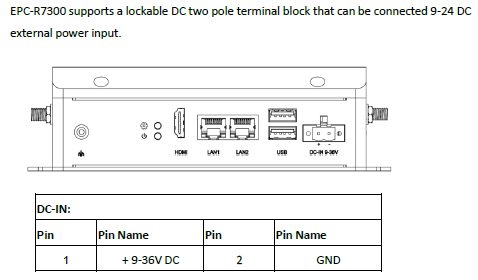

DC in

RTENOTITLE

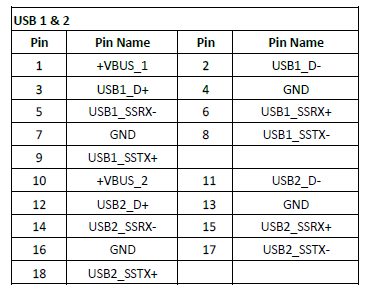

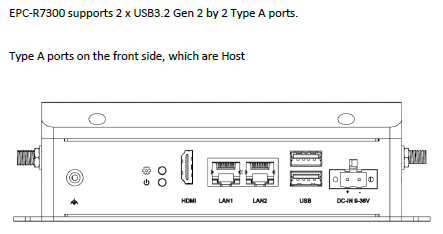

USB Ports

RTENOTITLE

RTENOTITLE

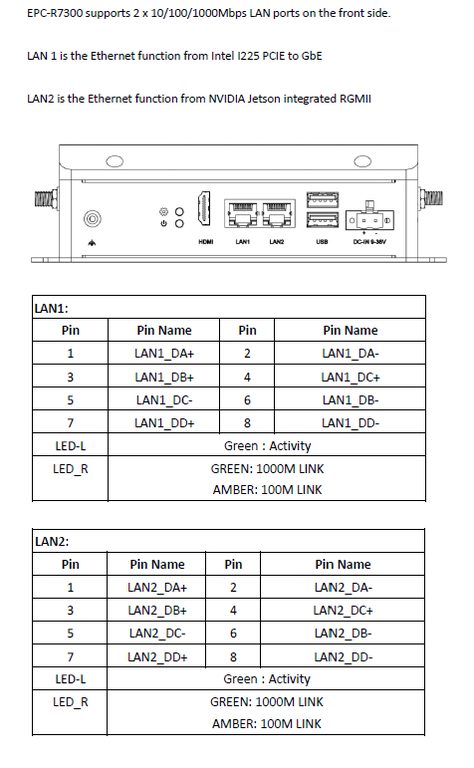

LAN Ports

RTENOTITLE

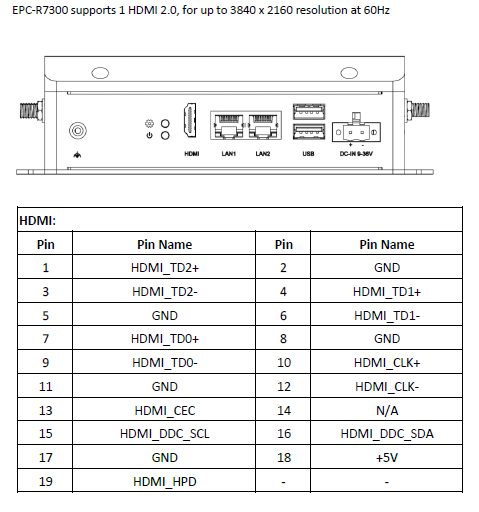

HDMI

RTENOTITLE

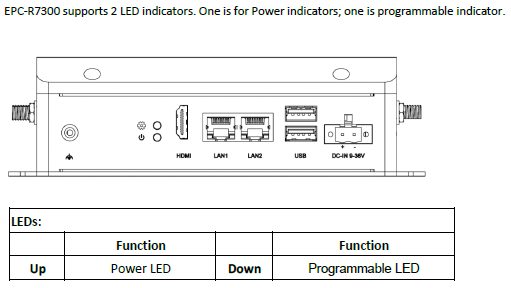

LED Indicator

RTENOTITLE

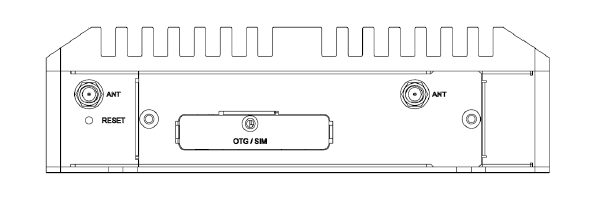

Side Door

RTENOTITLE

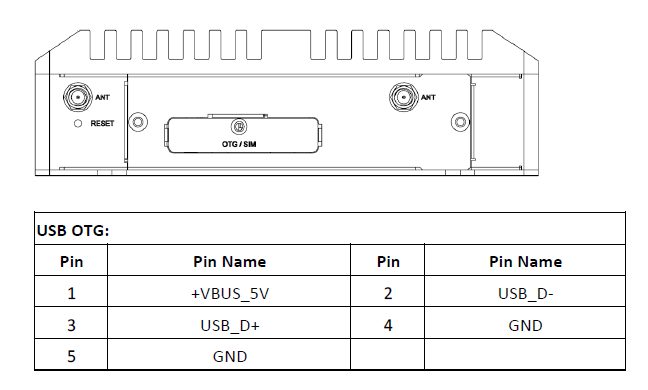

OTG Port

RTENOTITLE

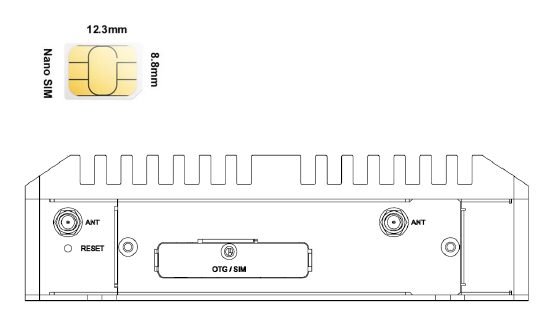

Nano SIM

RTENOTITLE

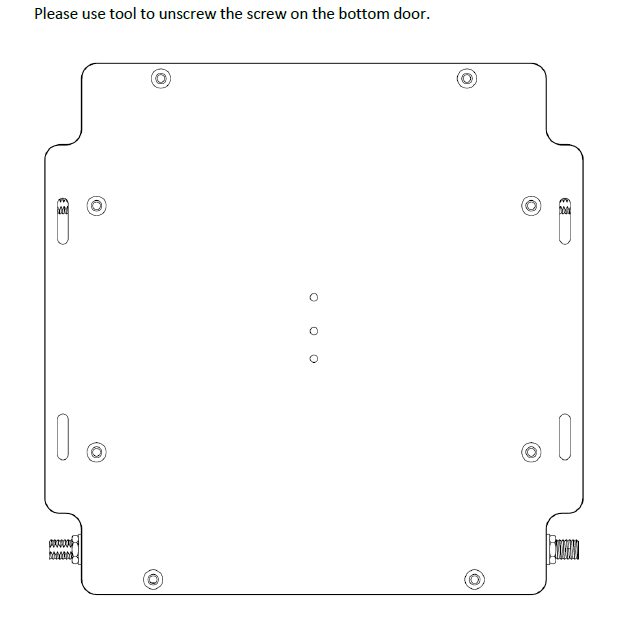

Bottom Door

RTENOTITLE

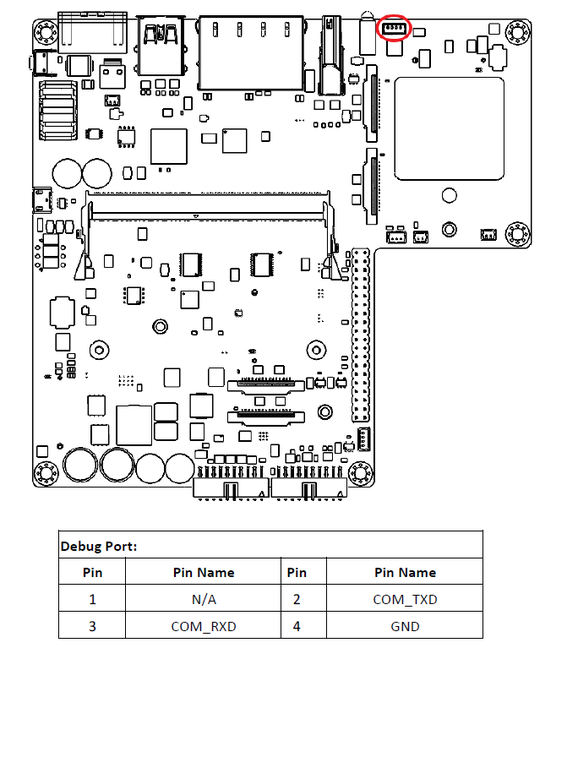

Debug Port

EPC-R7300 provides one Debug Port for development used. Debug cable P/N: 1700021565-01 4P-1.25 to D-SUB 9P (F) 60cm

RTENOTITLE

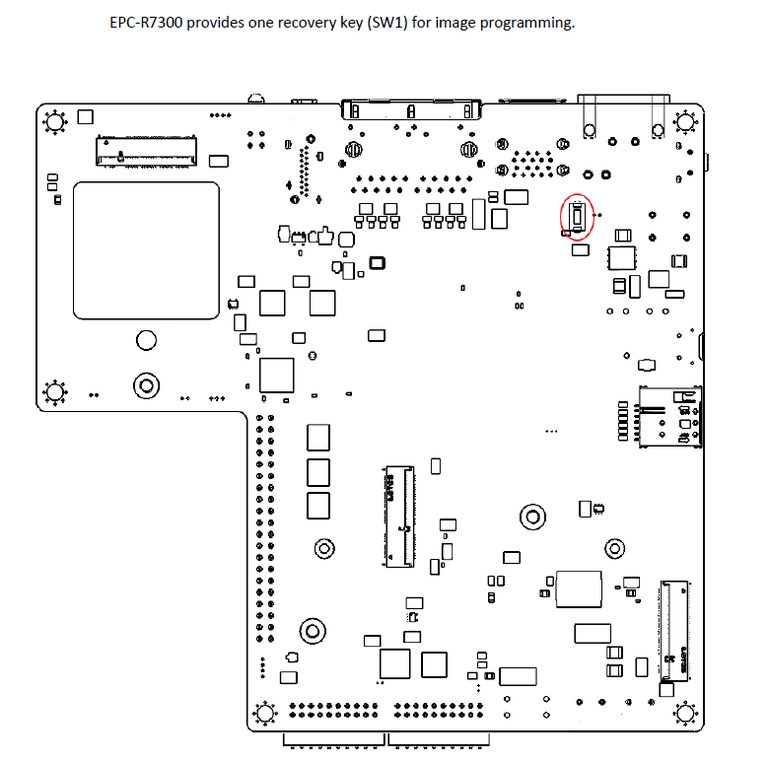

Recovery Key

RTENOTITLE

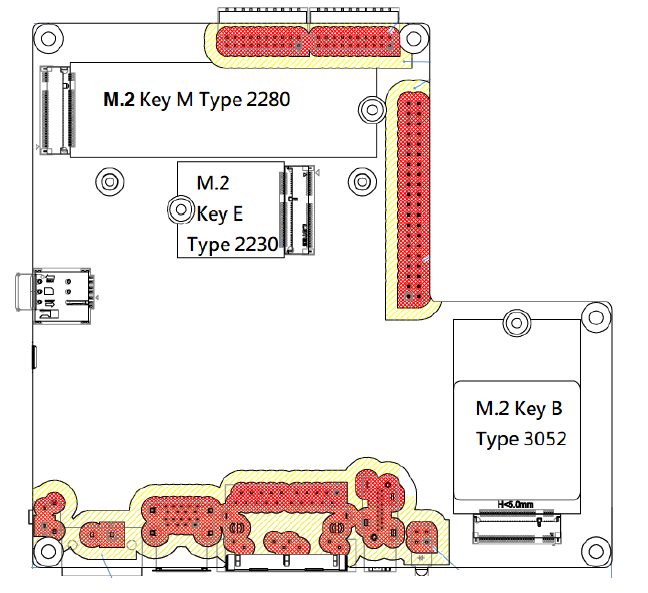

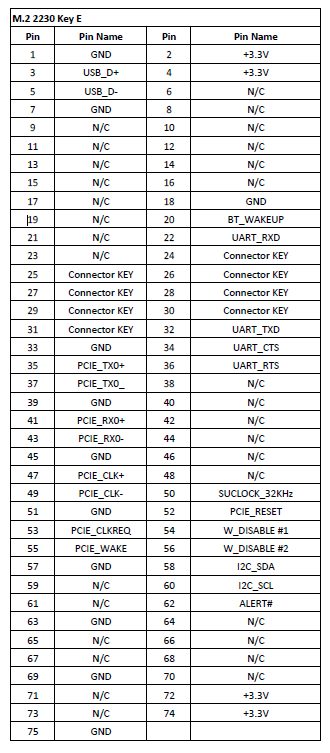

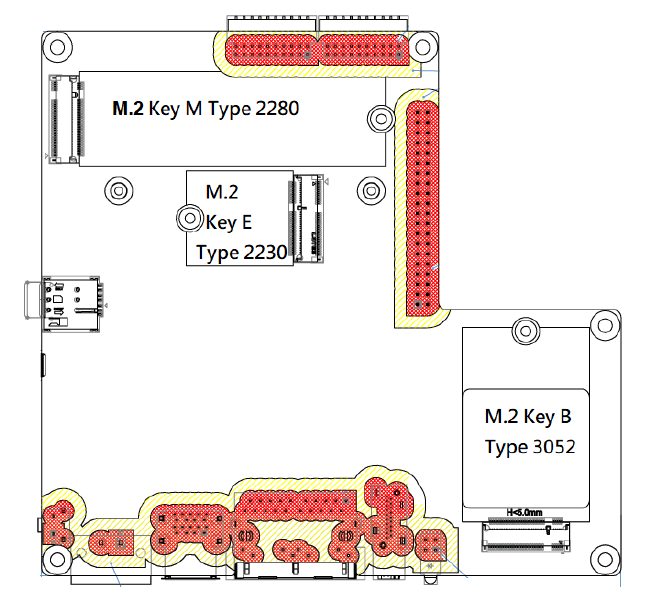

M.2 2230 Key E Slot

EPC-R7300 provides one M.2 2230 Key E Slot for WLAN card. P/N: EWM-W159M201E 802.11 ac/a/b/g/n + Bluetooth 5.0 M.2 2230 (A-E Key) Card

RTENOTITLE

RTENOTITLE

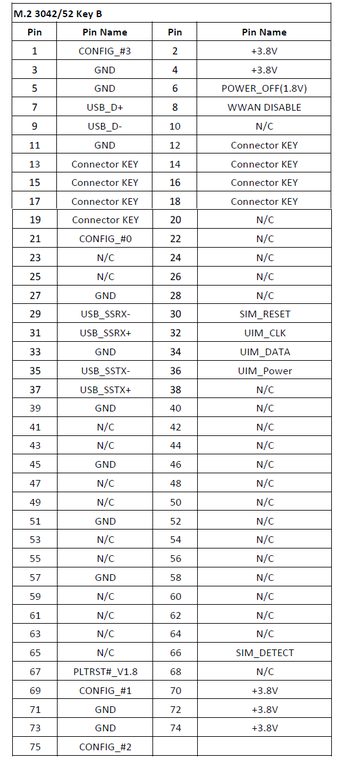

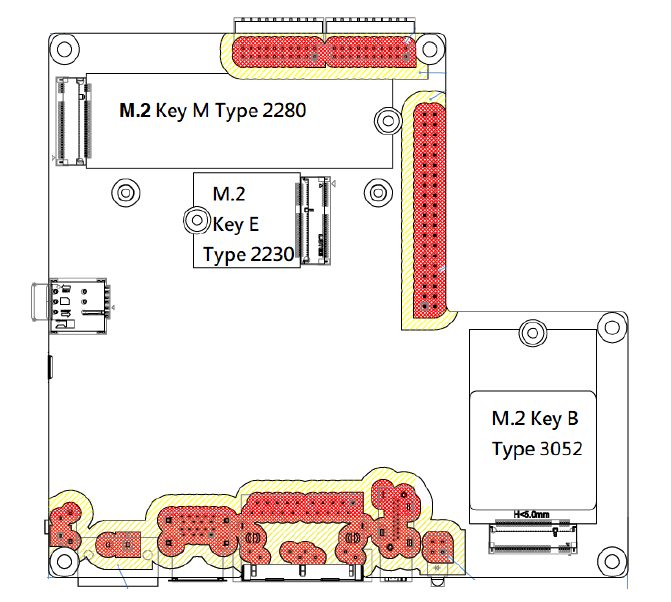

M.2 3042 Key B Slot

EPC-R7300 provides one M.2 3042 Key B Slot for WWAN card. P/N: AIW-355 DQ-E01 5G M.2 3052 (B Key) Card

RTENOTITLE

RTENOTITLE

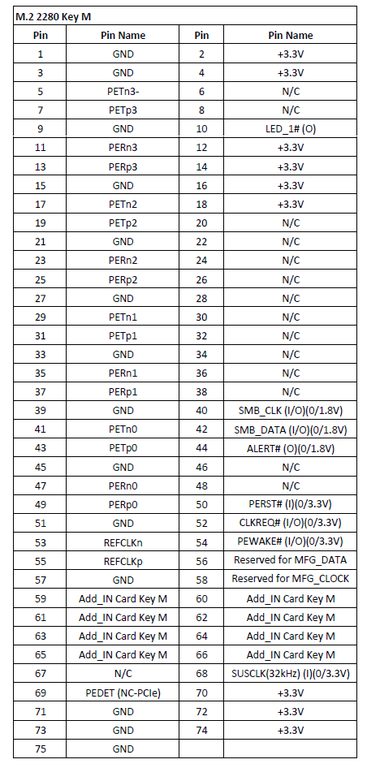

M.2 2280 Key M Slot

EPC-R7300 provides one M.2 2280 Key M Slot for NVMe card. P/N: SQF-C8MV2-128G-EDE 128G M.2 2280 (M Key) Card

RTENOTITLE

RTENOTITLE

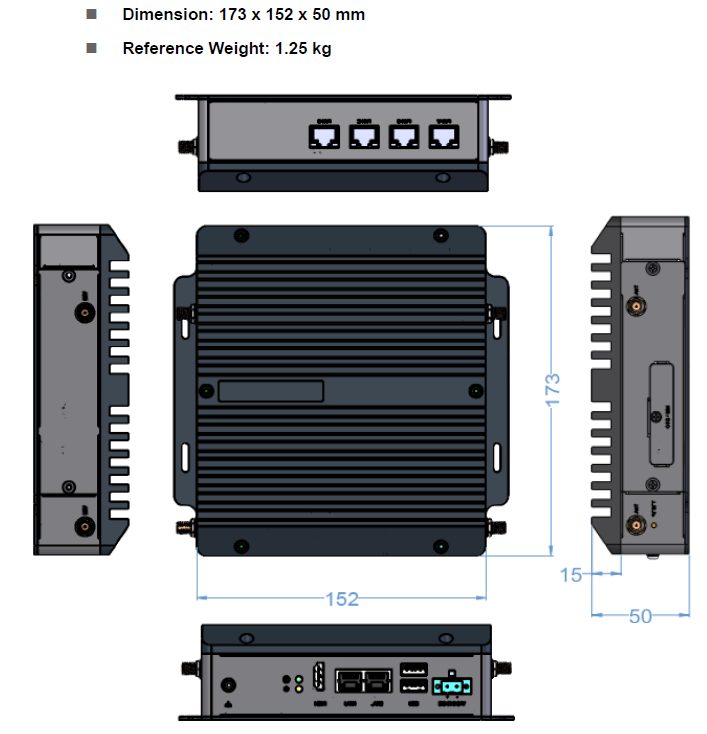

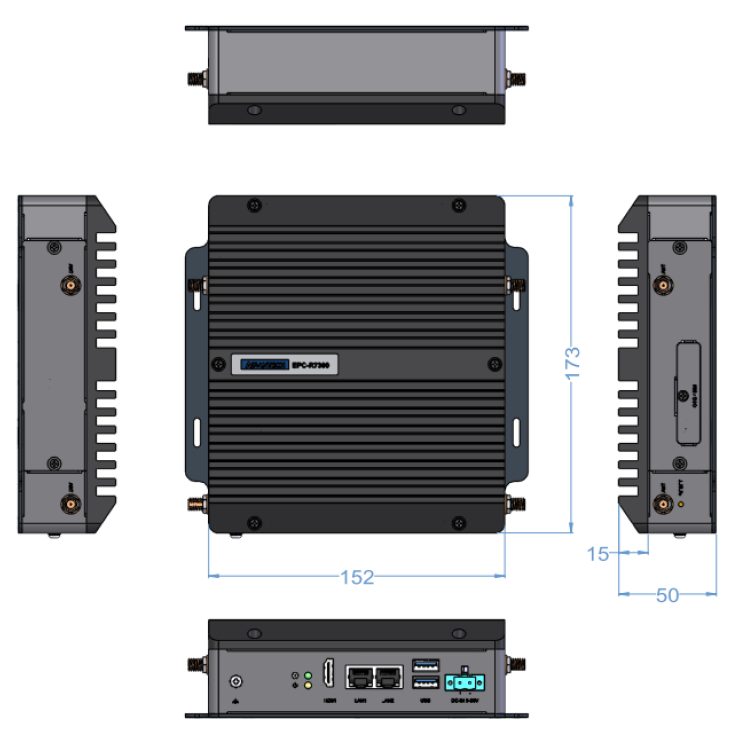

机械尺寸 (Mechanical Characteristics)​

RTENOTITLE

RTENOTITLE

快速入门 (Quick Start)

系统下载 (OS Download)​

Jetpack 6.2

Jetpack 5.1

Linux 燒錄方法 (Linux Flash eMMC Method)​

  1. Prepare a Linux host system Ubuntu x64 v18.04. Download the image file and unzip the image.tar.gz file on Linux host PC. Example use image version 7300A1AIM35UIV20026.tar.gz.
$ sudo tar zxvf 7300A1AIM35UIV20026_2023-07-03.tgz
$ cd Linux_for_Tegra

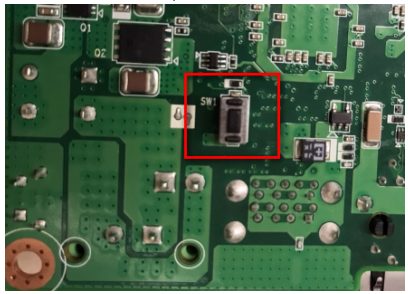

  1. Enter to recovery mode by holding the recover button (SW1) and plug power to boot. Release recover button around 3 seconds after plug in power.

RTENOTITLE

Or enter following command in the device.

$ sudo reboot --force forced-recovery
  1. Connect Micro USB cable from EPC-R7300 Micro USB port to Linux host PC USB TypeA port. Check the device is in recovery mode by command "lsusb". Will get NVidia Corp. with ID 0955:7623
[ubuntu@linux 11:55:43 ~]$ lsusb
Bus 002 Device 001: ID 1d6b:0003 Linux Foundation 3.0 root hub
Bus 001 Device 072: ID 174c:2362 ASMedia Technology Inc. ASM236X series
Bus 001 Device 073: ID 05ac:12a8 Apple, Inc. iPhone5/5C/5S/6
Bus 001 Device 074: ID 0955:7623 NVIDIA Corp. APX
Bus 001 Device 003: ID 0bda:0169 Realtek Semiconductor Corp. Mass Storage Device
  1. Execute command to flash image:

For Jetpack 5.1.1:

(1) To flash QSPI + NVME SSD:

$ sudo ./tools/kernel_flash/l4t_initrd_flash.sh --external-device nvme0n1p1 -c tools/kernel_flash/flash_l4t_external.xml -p "-c bootloader/t186ref/cfg/flash_t234_qspi.xml" --showlogs --network usb0 jetson-orin-epcr7300-a1 internal

(2) To flash only QSPI:

$ sudo ./flash.sh --no-system./img_EPC-R7300 -c bootloader/t186ref/cfg/flash_t234_qspi.xml jetson-orin-epcr7300-a1 mmcblk0p1

(3) To flash only NVMe SSD (Need to flash QSPI first):

$ sudo ./tools/kernel_flash/l4t_initrd_flash.sh --external-only --external-device nvme0n1p1 -c tools/kernel_flash/flash_l4t_external.xml --showlogs --network usb0 jetson-orin-epcr7300-a1 internal

For Jetpack 6.2:

(1) To flash QSPI + NVME SSD:

$ sudo ./tools/kernel_flash/l4t_initrd_flash.sh --external-device nvme0n1p1 -c tools/kernel_flash/flash_l4t_external.xml -p "-c bootloader/generic/cfg/flash_t234_qspi.xml" --showlogs --network usb0 jetson-orin-nano-devkit-super internal

(2) To flash QSPI + USB DISK:

$ sudo ./tools/kernel_flash/l4t_initrd_flash.sh --external-device sda1 -c tools/kernel_flash/flash_l4t_external.xml -p "-c bootloader/generic/cfg/flash_t234_qspi.xml" --showlogs --network usb0 jetson-orin-nano-devkit-super internal
  1. Wait around 10~15 minute to flash image to device:

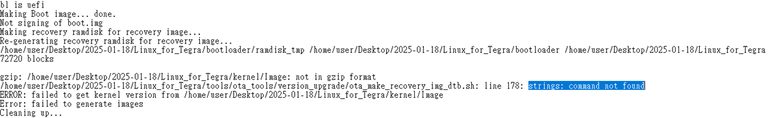

If you get the below "strings: command not found" error, please install "binutils"

$ sudo apt install binutils

RTENOTITLE

  1. Check the device login to system:

login user: ubuntu/ubuntu

  1. Check the eth1 can get the IP Addr:

Flash image video:

Debug 串口調試 (Debug Port Setting)​

以 Tera Term 为例介绍如何使用串口调试功能

Baud Rate波特率：115200
Data 数据位：8
Parity 奇偶校验：无
Stop 停止位：1
Flow Control流控：无

Tera Term Tool

RTENOTITLE

RTENOTITLE

Check the Serial port in Device Manager (查看PC端的串口号)：

If you can not identify the Serial device, please check your serial driver.

RTENOTITLE

Debug port connection (串口連接)

Log into Terminal Tool (进入串口调试终端)：

login user: ubuntu/ubuntu

Linux 基本使用方法 for Jetson Series (Linux System Basic Operating Method for Jetson Series)

  • Check module
$ jetson_release
$ cat /proc/device-tree/model
  • Check OS release version
$ cat /etc/os-release
  • Check tegra version
$ cat /etc/nv_tegra_release
  • Install stress-ng
$ sudo apt install stress-ng
  • Execute stress test
$ stress-ng --cpu 0 --cpu-method all -t 1h

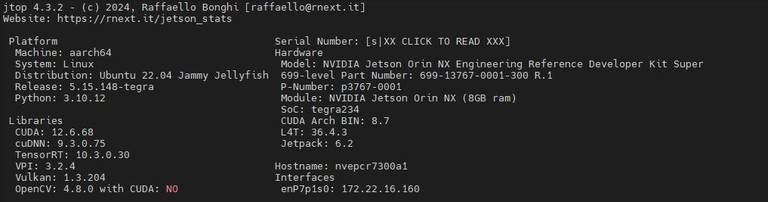

  • Install jtop
$ sudo apt update
$ sudo apt install python3-pip
$ sudo pip3 install -U jetson-stats
$ jtop
  • Install chromium
$ sudo snap install chromium

If there is issue cannot launch chromium, please reference link below to download grade snap version:

chromium not working

  • Install nvidia-jetpack
$ sudo apt install nvidia-jetpack

RTENOTITLE

Modify defconfig: If an unknown symbol issue occurs after modifying the defconfig, please refer to the compiled information below.

It may fail with additional steps. Please simply follow the steps:

  1. And follow the steps to rebuild kernel, out-of-tree modules, and dtbs:

https://docs.nvidia.com/jetson/archives/r36.4.3/DeveloperGuide/SD/Kernel/KernelCustomization.html#building-the-jetson-linux-kernel

// ignore step 2 which is for RT kernel

https://docs.nvidia.com/jetson/archives/r36.4.3/DeveloperGuide/SD/Kernel/KernelCustomization.html#building-the-nvidia-out-of-tree-modules

// ignore step 2 which is for RT kernel

https://docs.nvidia.com/jetson/archives/r36.4.3/DeveloperGuide/SD/Kernel/KernelCustomization.html#building-the-dtbs

  1. Manually copy the files: (quick fix for a known issue: https://forums.developer.nvidia.com/t/319667/)
$ cd /Linux_for_Tegra/rootfs/lib/modules/5.15.148-tegra/updates/
$ sudo cp nvidia.ko opensrc-disp/
$ sudo cp nvidia-modeset.ko opensrc-disp/
$ sudo cp nvidia-drm.ko opensrc-disp/
  1. Flash the system
$ cd /Linux_for_Tegra/
$ sudo ./flash.sh jetson-agx-orin-devkit internal
