ASR-A501_Android_User_Guide
产品特性(Features)
- Rockchip RK3588 Arm Quad Cortex-A76 2.4GHz and Quad Cortex-A55 1.8 GHz
- Built-in NPU with processing performance of up to 6 TOPS
- Onboard 4/8GB LPDDR4 memory and 32/64GB eMMC
- Supports 8K @ 60 fps H.265/VP9 video decoding and 8K @ 30 fps H.265/H.264 video encoding
- Supports 2 x PCIE 3.0 x1, 4 x MIPI-CSI, UART, 2 x I2C, 1 x SPI, and 1 x USB by 120-pin B2B connector
- Provides 1 x 2.5GbE, 3 x GbE, 2 x USB3.0, 2 x CAN FD, 2 x RS-232/485, 2 x RS-485, 1 x HDMI2.0, 1 x Line out/Mic in 12-24V DC In, contact: 8KV, air: 15KV, ESD protection
- Provides a M.2 E Key with PCIE 2.1, USB 2.0 signal and a M.2 B Key with PCIE 2.1/SATA, USB 2.0 signal
- Supports Linux Debian12, Android14 and Advantech Robotic Suite SDK
产品官网链接（Product official website link）
接口布局和尺寸（Layout and Sizes）

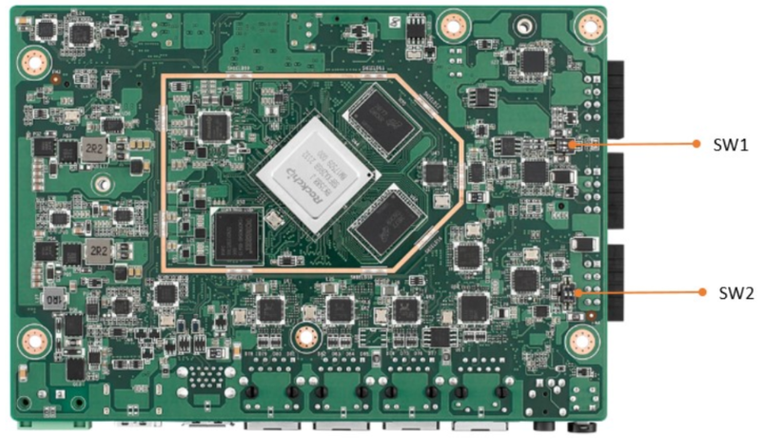

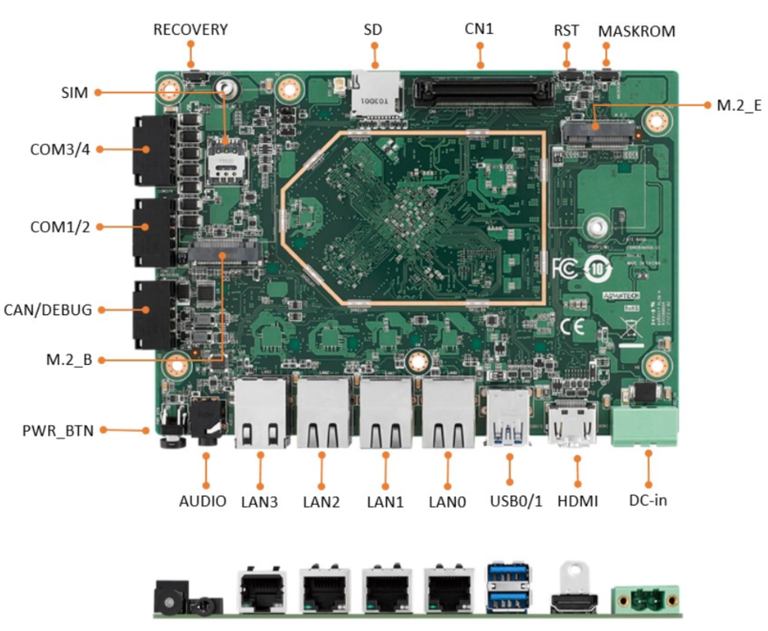

ASR-A501接口布局图 Board Dimension Layout

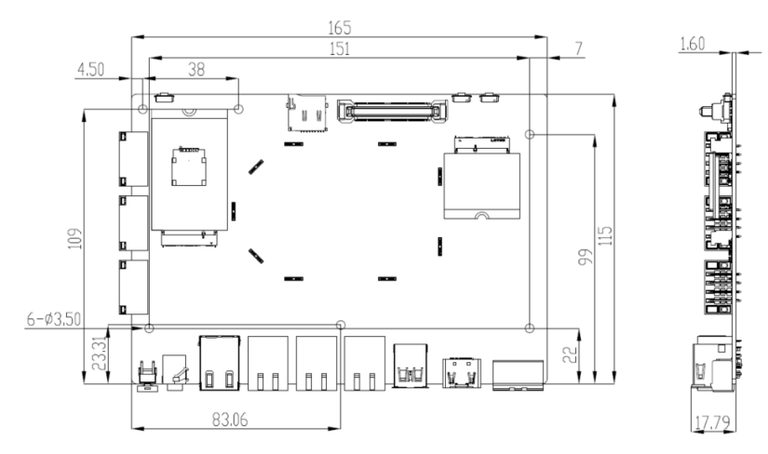

接口尺寸 Board Dimension
接口引脚定义 (Connector Pin definitions)

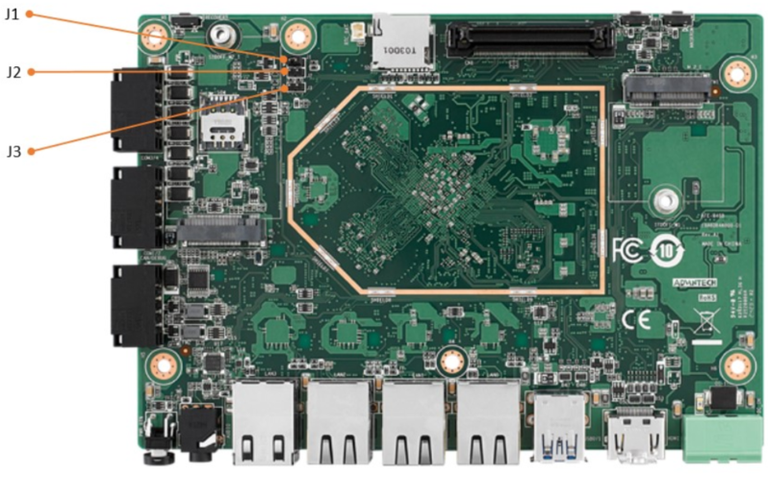

| Jumper List | |
| Position | Description |
| [SW1] | COM2/4 485 Terminal |
| [SW2] | CAN FD Terminal |
| [J1] | USB0 OTG Mode selection,default USB3.0 host |
| [J2] | ATX/AT Mode Selection,defa |
快速入门 (Quick Start)
系统下载 (OS Download)
Note: LIV= Yocto Linux , UIV=Ubuntu , DIV = Debian , AIV = Android, LBV=BSP , LIV= Image
| Platform | Product | Image Version | Release Date | Release Version | Release notes | Image Download | BSP Download Tag | Test Report | Comment |
| RK3588 | ASRA-501 | V14013 | 2025/08/25 | Beta | [Release_Note] | Baidu Password：a887 Dropbox | RK_U14_AIV14013.xml | Test Report |
-
Alpha: Basic I/O function bring up by RD;
-
Beta: Basic I/O function、performance and middleware verified by RD. Peripherals integrated;
-
GA: Beta version by QE verification;
-
RTM: Beta version by SI/Power/QE verification and pre-loaded;
For BSP files, Please contact us.
Android 燒錄方法 (Please refer to Debiand Flash eMMC Method)
[Using_RKTool for ASR-A501.]
[Using bootup sd disk made_by SDDiskTool for ASR-A501.]
Linux基本使用方法
ASR-A501 Function：
- [DC-IN]
- [CAN/DEBUG]
- [PWR_BTN]
- [AUDIO]
- [Ethernet & LED]
- [USB0/1]
- [HDMI]
- [MASKROM]
- [RST]
- [SD]
- [RTC_BAT]
- [Watchdog]
- [TPM]
- [RECOVERY]
- [UART（COM1/2/3/4）]
- [PCIE_M.2_E Key]
- [PCIE_M.2_B Key]
- [CN1]
- [CN2]
