RSB-3730 Connector LAN1

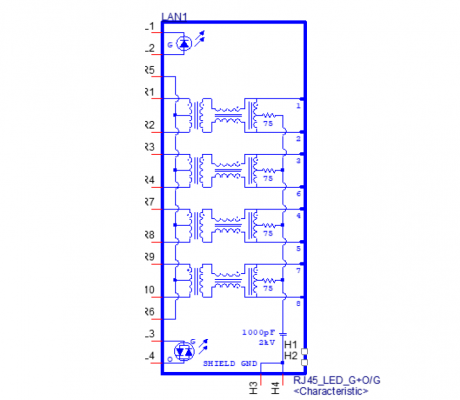

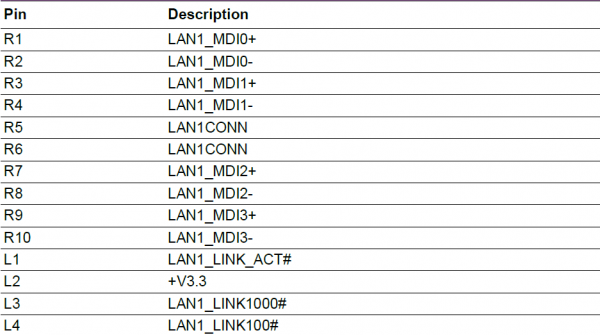

Ethernet Connector (LAN1) RSB-3730 provides one RJ45 LAN interface connector, which are compliant with 1000 base-T IEEE 802.3ab, 100 base-TX IEEE 802.3u, 10 base-T IEEE 802.3.The  Ethernet ports provide standard RJ45 jack connector with LED indicators on the front side to show Active/Link status and Speed status.
