HDMI

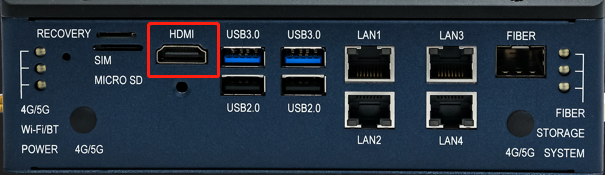

EPC-R5710 supports 1 HDMI 2.0, for up to 1920x1080P resolution at 60Hz.
| Pin | Pin Name | Pin | Pin Name |
|---|---|---|---|
| 1 | HDMI_TD2+ | 2 | GND |
| 3 | HDMI_TD2- | 4 | HDMI_TD1+ |
| 5 | GND | 6 | HDMI_TD1- |
| 7 | HDMI_TD0+ | 8 | GND |
| 9 | HDMI_TD0- | 10 | HDMI_CLK+ |
| 11 | GND | 12 | HDMI_CLK- |
| 13 | HDMI_CEC | 14 | HDMI_Utility/ eARC+ |
| 15 | HDMI_DDC_SCL_Z | 16 | HDMI_DDC_SDA_Z |
| 17 | GND | 18 | +5V |
| 19 | HDMI_HPD/ eARC- | -- | -- |
