USB Ports
EPC-R5710 supports 2x USB3.0 Gen 1 by 2 Type A port and 2X USB2.0 Gen 1 by 2 x USB 2.0 Type A port on the front side, which are Host.

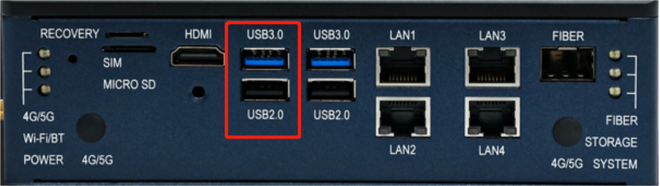

USB1
| Pin | Pin Name | Pin | Pin Name |
|---|---|---|---|
| 1 | +VBUS_USB1 | 2 | USB1_D- |
| 3 | USB1_D+ | 4 | GND |
| 5 | USB1_SSRX-_z | 6 | USB1_SSRX+_z |
| 7 | GND | 8 | USB1_SSTX-_z |
| 9 | USB1_SSTX+_z | 10 | +VBUS_USB4 |
| 11 | USB4_D- | 12 | USB4_D+ |
| 13 | GND | -- | -- |
| H1 | GND | H2 | GND |
| H3 | GND | H4 | GND |

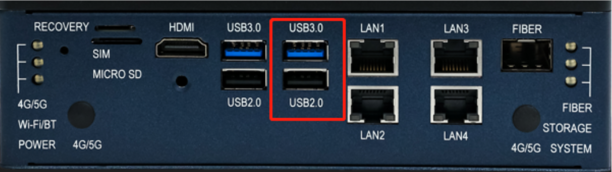

USB2
| Pin | Pin Name | Pin | Pin Name |
|---|---|---|---|
| 1 | +VBUS_USB2 | 2 | USB2_D- |
| 3 | USB2_D+ | 4 | GND |
| 5 | USB2_SSRX-_z | 6 | USB2_SSRX+_z |
| 7 | GND | 8 | USB2_SSTX-_z |
| 9 | USB2_SSTX+_z | 10 | +VBUS_USB5 |
| 11 | USB5_D- | 12 | USB5_D+ |
| 13 | GND | -- | -- |
| H1 | GND | H2 | GND |
| H3 | GND | H4 | GND |
