LAN Ports
EPC-R5710supports 5x 10/100/1000Mbps LAN5 port on the front side .Lan1&Lan2&Lan3&Lan4 on the rear side.

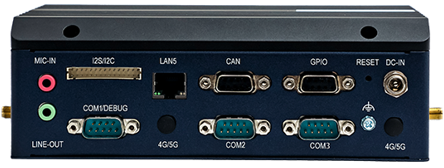

LAN5
| Pin | Pin Name | Pin | Pin Name |
|---|---|---|---|
| L1 | LANT_Z_ACT# | L2 | +DVDD33_RTL |
| R1 | LANT_MDI0+ | R2 | LANT_MDI0- |
| R3 | LANT_MDI1+ | R4 | LANT_MDI1- |
| R5 | GND | R6 | GND |
| R7 | LANT_MDI2+ | R8 | LANT_MDI2- |
| R9 | LANT_MDI3+ | R10 | LANT_MDI3- |
| L3 | GBE0_LINK1000# | L4 | GBE0_LINK100# |

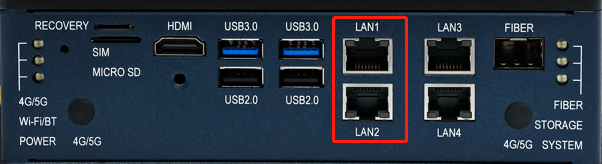

LAN1&LAN2
| Pin | Pin Name | Pin | Pin Name |
|---|---|---|---|
| AL3 | LAN0_ACT_Z# | AL4 | DVDDIO |
| RA1 | LAN0_MDI0+_C | RA2 | LAN0_MDI0-_C |
| RA3 | LAN0_MDI1+_C | RA4 | LAN0_MDI1-_C |
| RA5 | LAN0_MDI2+_C | RA6 | LAN0_MDI2-_C |
| RA7 | LAN0_MDI3+_C | RA8 | LAN0_MDI3-_C |
| RA9 | GND | RA10 | GND |
| AL1 | LAN0_1000_LINK_Z# | AL2 | LAN0_100_LINK_Z# |
| BL3 | LAN1_ACT_Z# | BL4 | DVDDIO |
|---|---|---|---|
| RB1 | LAN1_MDI0+_C | RB2 | LAN1_MDI0-_C |
| RB3 | LAN1_MDI1+_C | RB4 | LAN1_MDI1-_C |
| RB5 | LAN1_MDI2+_C | RB6 | LAN1_MDI2-_C |
| RB7 | LAN1_MDI3+_C | RB8 | LAN1_MDI3-_C |
| RB9 | GND | RB10 | GND |
| BL1 | LAN1_1000_LINK_Z# | BL2 | LAN1_100_LINK_Z# |

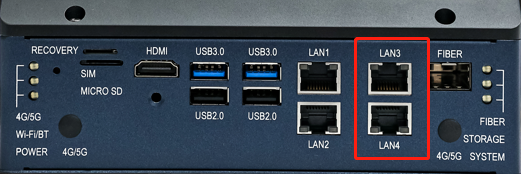

LAN3&LAN4
| Pin | Pin Name | Pin | Pin Name |
|---|---|---|---|
| AL3 | LAN2_ACT_Z# | AL4 | DVDDIO |
| RA1 | LAN2_MDI0+_C | RA2 | LAN2_MDI0-_C |
| RA3 | LAN2_MDI1+_C | RA4 | LAN2_MDI1-_C |
| RA5 | LAN2_MDI2+_C | RA6 | LAN2_MDI2-_C |
| RA7 | LAN2_MDI3+_C | RA8 | LAN2_MDI3-_C |
| RA9 | GND | RA10 | GND |
| AL1 | LAN2_1000_LINK_Z# | AL2 | LAN2_100_LINK_Z# |
| BL3 | LAN3_ACT_Z# | BL4 | DVDDIO |
| RB1 | LAN3_MDI0+_C | RB2 | LAN3_MDI0-_C |
| RB3 | LAN3_MDI1+_C | RB4 | LAN3_MDI1-_C |
| RB5 | LAN3_MDI2+_C | RB6 | LAN3_MDI2-_C |
| RB7 | LAN3_MDI3+_C | RB8 | LAN3_MDI3-_C |
| RB9 | GND | RB10 | GND |
| BL1 | LAN3_1000_LINK_Z# | BL2 | LAN3_100_LINK_Z# |
