EPC-R5710 GPIO

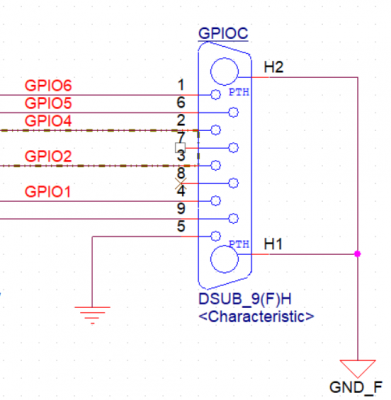

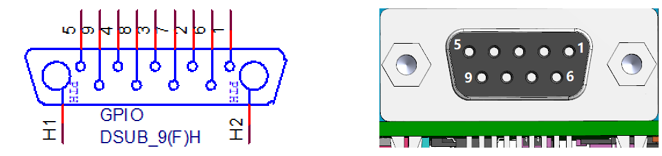

GPIO Pin​

PinNumbers
GPIO143
GPIO242
GPIO3475
GPIO4474
GPIO5472

Generate the path node number of the corresponding gpioX, increasing with the export orde.

GPIO Loopback Test (Using GPIO1 and GPIO2 as examples)

Step 1: Connect GPIO1 and GPIO2

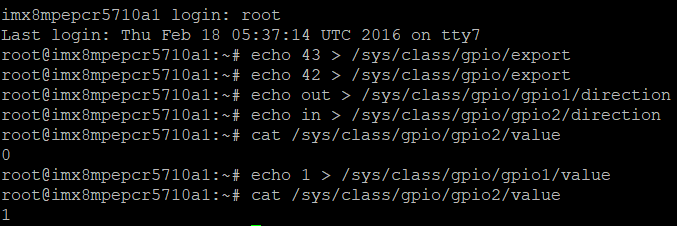

Step 2: Export GPIO interface

# echo 43 > /sys/class/gpio/export
# echo 42 > /sys/class/gpio/export
# echo out > /sys/class/gpio/gpio1/direction
# echo in > /sys/class/gpio/gpio2/direction
# cat /sys/class/gpio/gpio2/value
0#
echo 1 > /sys/class/gpio/gpio1/value
# cat /sys/class/gpio/gpio2/value
1
