ROM-6881 Android 14 user guide

Contents​

  • 1產品特性(Features) 1.1產品官網鏈接（Product official website link）
  • 2接口佈局和尺寸（Layout and Sizes） 2.1ROM-6881接口佈局图 Board Dimension Layout 2.2SOM-DB2510 A1 Board Dimension Layout 2.3SOM-DB2510 Connectors and Jumper Settings（default state） 2.4LED Function List 2.5Switch Settings 2.6接口引脚定義 (Connector Pin definitions) 2.7ROM-6881 機械尺寸（Mechanical Characteristics） 2.8SOM-DB2510_A1 机械尺寸 (Mechanical Characteristics) 2.9Board Mechanical Diagram -Front 2.10Assemblly Diagram
  • 3快速入门 (Quick Start) 3.1系统下载 (OS Download) 3.2系统燒錄方法 ( System burning mode )
  • 4Linux基本使用方法
  • 5Linux BSP编译方法（Linux BSP Compile Method）

產品特性(Features)​

  • Rockchip RK3588 Arm Quad Cortex-A76 2.4GHz and Quad Cortex-A55 1.8 GHz
  • Onboard 4/8 GB LPDDR4 memory and 32/64 GB eMMC
  • Supports 8K @ 60 fps H.265/VP9 video decoding and 8K @ 30 fps H.265/H.264 video encoding
  • Supports HDMI, DP, eDP and LVDS/DSI
  • 4 x PCIe 3.0, dual gigabit LAN, 2 x USB 3.0, USB2.0 OTG, SATA 3.0, 2 x CAN, 4 x MIPI-CSI, 3 x UART
  • Supports Linux Debian11 and Android

ROM-6881 - 研华 (advantech.com.cn)

接口佈局和尺寸（Layout and Sizes）​

ROM-6881接口佈局图 Board Dimension Layout​

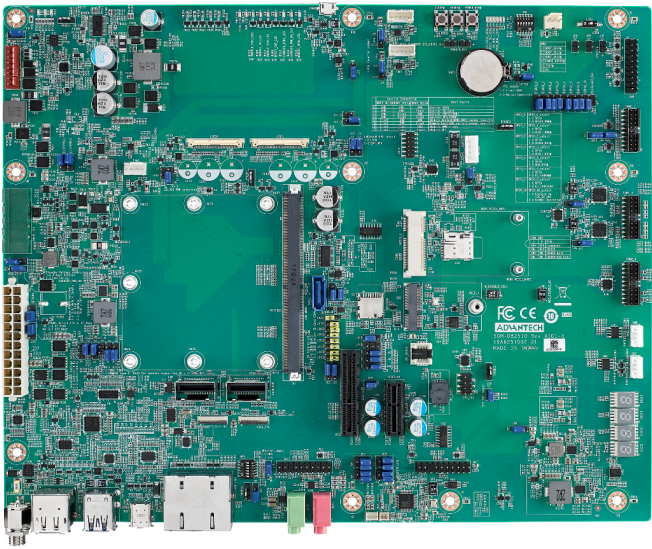

SOM-DB2510 A1 Board Dimension Layout​

The figures below indicate the main chips on SOM-DB2510 Development Board for  SMARC 2.1.

SOM-DB2510 Connectors and Jumper Settings（default state）​

Connector Locations

Switch Locations

I/O Connctor Locations

Button Locations

LED Locations

LabelFunctionLabelFunction
ATX1ATX ConnectorFAN1Smart Fan Connector
SMARC_IN1Wide Range Input Power Connector (3V~5.25V)FAN2System Fan Connector
DCIN1DCIN connectorCAN0_1CAN Bus Connector
DP0_HDMIDP & HDMI ConnectorUSB0USB OTG Connector
USB12USB 2.0 port1~2 & USB 3.0 port0 ConnectorCOM1_3COM Port Port1,3 Connector
TYPEC_DP1Type-C ConnectorCOM2_4COM Port Port2,4 Connector
LAN0_LAN1LAN0 & LAN1 ConnectorCN8I2C connector for I2C_PM
LOUT1Line Out ConnectorCN7I2C Connector for I2C_GP
MIC1MIC1 ConnectorCN10eSPI Pin Header
CN1_MXM1SMARC ConnectorSATAP1SATA Power Connector
PCIEA-X4PCIe x4 ConnectorCSI0_B2BMIPI B2B Connector for 2M Camera
SATA1SATA Port0 ConnectorCSI1_B2BMIPI B2B Connector for 8M & 13M Camera
PCIED-X1PCIe x1 ConnectorSPI_BIOS1Carrier Board BIOS Socket (SOIC)
M2M.2 Key-E ConnectorBAT1Coin battery holder
MPCIE_CMini PCIe ConnectorBAT2Smart battery Connector
SIMSIM card ConnectorLINEOUT_1I2S Headphone Connector
LVDS1LVDS1 ConnectorMIC_1I2S MIC In Connector
LVDS0LVDS0 ConnectorCSI1_FPCMIPI FPC Connector for 8M & 13M Camera
LVDS1_INVERTERLVDS1 Invertor ConnectorCSI0_FPCMIPI FPC Connector for 2M Camera
LVDS0_INVERTERLVDS0 Invertor ConnectorCN5I2S2 Connector
SPI_BIOS2Carrier Board BIOS Socket (QFN)CN17I2S0 Connector
SDSD Card Connector

Jumper Locations

LableFunctionLableFunction
BTN3Sleep ButtonJ14EDP1/LVDS1 Hot-Plug Detect Selection Header
BTN1Power ButtonJ56Standby Voltage Control Header
BTN2Reset ButtonJ44Module +3.3V/+5V Power Selection Header
SW4BOOT SELECT SwitchPSON1AT/ATX Selection Header
LID1LID SwitchSPI_CN1SPI Header
J30Enable Battery Low# HeaderCN14For CAN Bus port0 Terminal Resistor
M2E_DISABLE_N1M.2 Wireless DisableCN15For CAN Bus port1 Terminal Resistor
J29SMB Alert Enable HeaderJ3/J4DP0 EQ0 Selection
CN9Header For GPIO TestJ5/J6DP0 EQ1 Selection
J7/J8LVDS0 Power Selection HeaderJ58PCIE_B_CKREQ# Selection
J11/J12LVDS1 Power Selection HeaderJ59PCIE_A_CKREQ# Selection
J9LVDS0 Inverter Power Selection HeadeGPIO_0GPIO0/CAM0_PWR# Selection
J10EDP0/LVDS0 Hot-Plug Detect Selection HeaderGPIO_1GPIO1/CAM1_PWR# Selection
J26HDA/I2S Selection HeaderGPIO_2GPIO2/CAM0_RST# Selection
J1DP1/HDMI1 SelectGPIO_3GPIO3/CAM1_RST# Selection
J13LVDS1 Inverter Power Selection HeaderGPIO_4GPIO4/HDA_RST# Selection
J31Clear CMOS HeaderGPIO_5GPIO5/PWM_OUT Selection
J25SPI Power HeaderGPIO_6GPIO6/TACHIN Selection
SW1COM1 mode SelectSATA_ACT_PH1SATA act# Header
SW2COM3 mode SelectPWRBTN_PH1Power button Header
J41Core Power Voltage Control HeaderSYS_RESET_PH1Reset button Header
J2DDI1 AUX/DDC Selection

LED Function List​

LocationFunction
MODULE_VIN_LED1WDT_TIME_OUT# Indicate
MODULE_5V_LEDModule 5V Indicate
MODULE_VIN_LEDModule +V_MOD_IN Indicate
RESET_OUT_LEDRESET_OUT Indicate
RESET_OUT_LEDCARRIER_STBY Indicate
CARRIER_PWR_ON_LEDCARRIER_PWR_ON Indicate
MODULE_3P3V_LEDModule 3.3V Indicate
3P3V_LEDCarrier Board +V3.3 Indicate
5V_LEDCarrier Board +V5 Indicate
5V_DUAL_LEDCarrier Board +V5SB Indicate
3P3V_DUAL_LEDCarrier Board +V3.3SB Indicate
5VA_LEDCarrier Board +V5D_MOD Indicate
SATA_LEDSATA Indicate
SOM_LEDSOM BOM Indicate
RISC_LEDRISC BOM Indicate

Switch Settings​

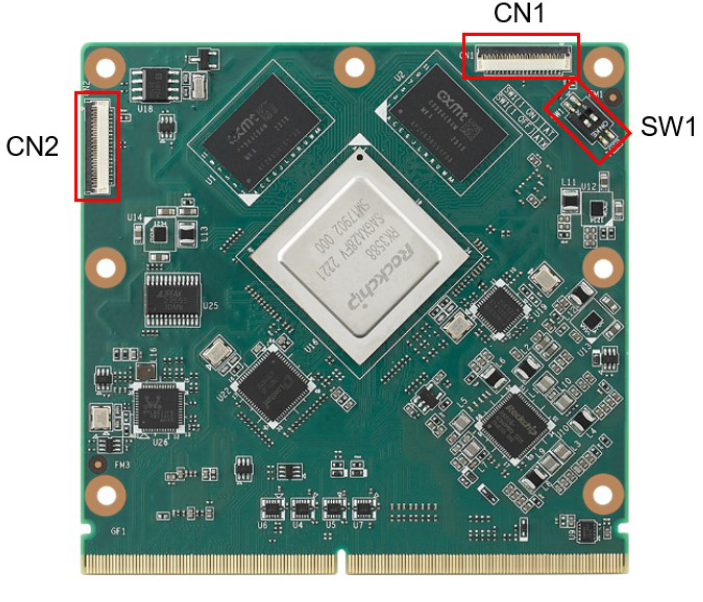

ROM-6881 Switch Settings

  • SW1 （AT & ATX Mode Switch）

SOM-DB2510 Switch Settings

  • SW4 (Boot Select/Force Recovery/Test Switches)
  • LID1 (LID Button Enable/Disable Switches)
  • SW5 (LAN CONN LED Pull High Switches)
  • SW1 (COM0 Settings)
  • SW2 (COM2 Settings)
  • SW3 (I2S Clock Settings)
  • M2E_DISABLE_N1 (M.2 Wireless Disable Switch)

接口引脚定義 (Connector Pin definitions)​

ROM-6881 Pin Connector

SOM-DB2510  Pin Connector

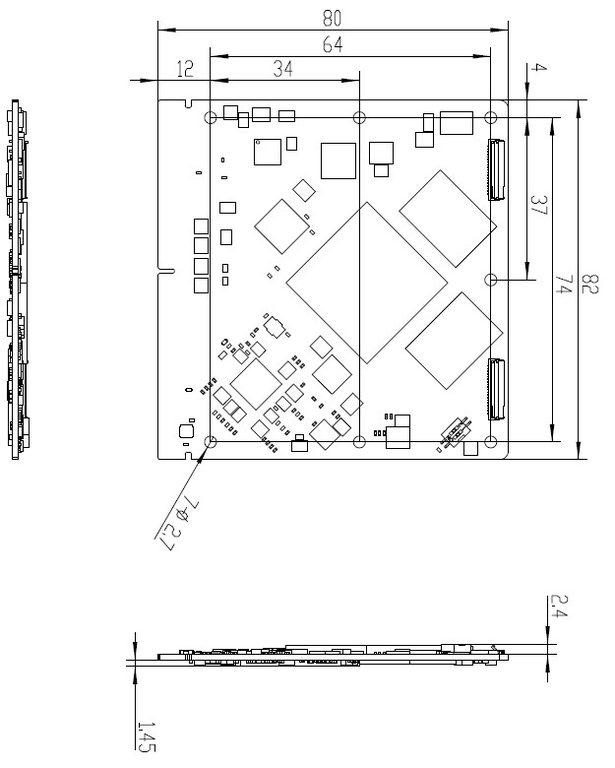

ROM-6881 機械尺寸（Mechanical Characteristics）​

  • Dimension: SMARC form factor size: (D x W) 82 x 80 mm / 3.22 x 3.15 inch
  • Height on Top: 2.4 mm
  • Height on Bottom: 1.45 mm

SOM-DB2510_A1 机械尺寸 ( Mechanical Characteristics)​

For more details regarding our 2D/3D models, please visit the Advantech COM support  service website at: http://com.advantech.com .

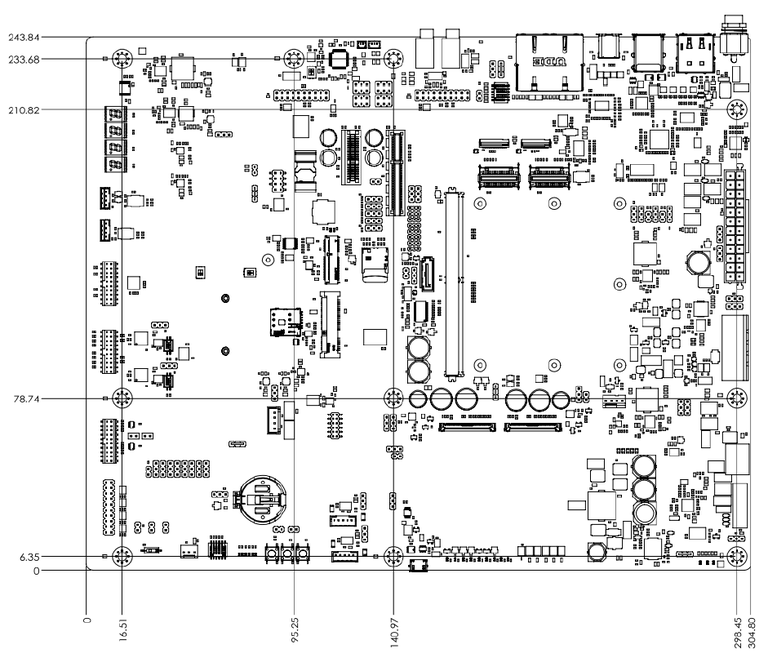

Board Mechanical Diagram -Front​

Board Mechanical Diagram -Side1

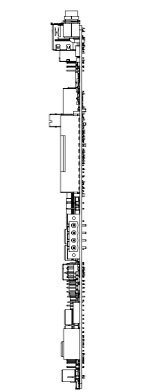

Board Mechanical Diagram -Side2

Assemblly Diagram​

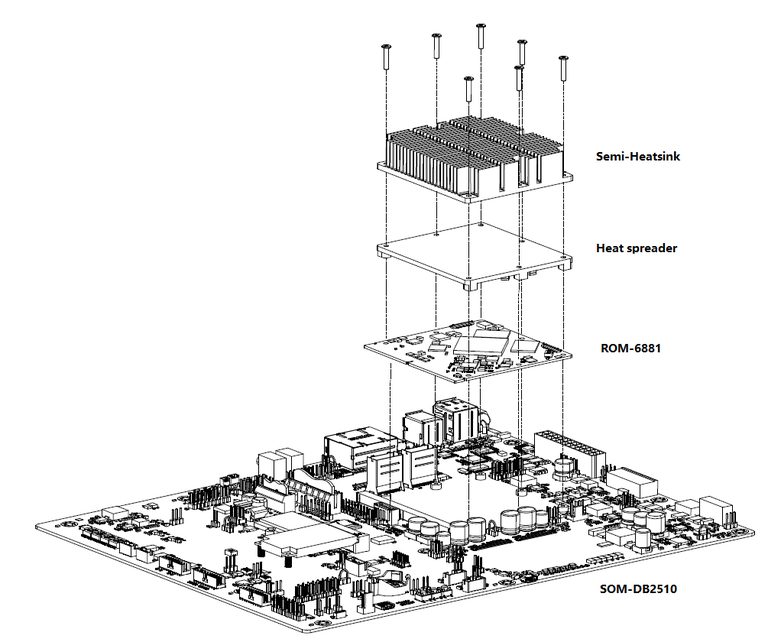

These figures demonstrate the order of assembly needed when attaching the thermal  module and COM module to the carrier board.

快速入门 (Quick Start)​

系统下载 (OS Download)​

Note: L IV= Yocto Linux , U IV=Ubuntu , D IV = Debian , A IV = Android, L B V=BSP , L I V= Image

PlatformProductImage VersionRelease DateRelease VersionRelease noteImage DownloadBSP Download TagTest ReportComment
RK3588ROM-6881V140132025/08/25BetaRelease_NoteBaidu Password：a887 DropboxRK_U14_AIV14013.xml
  • Alpha: Basic I/O function bring up by RD;
  • Beta: Basic I/O function、performance and middleware verified by RD. Peripherals integrated;
  • GA: Beta version by QE verification;
  • RTM: Beta version by SI/Power/QE verification and pre-loaded;

系统燒錄方法 ( System burning mode )​

1. Usering_RKTool.

2. Usering bootup_sd_disk made_by SDDiskTool.

Linux基本使用方法​

Linux BSP编译方法（Linux BSP Compile Method）​
