AOM-3841 Display（HDMI、DP、EDP）

Contents​

  • 1HDMI/DP Screen
  • 2Configure Resolution for HDMI/DP screen
  • 3HW Setting：
  • 4SW setting： 4.1Multi-Display 4.2Dual-Display 4.3Triple-Display

HDMI/DP Screen​

HDMI and DP support multi resolutions. They can be configured by GUI. HDMI and DP support 4K60Hz display.

Configure Resolution for HDMI/DP screen​

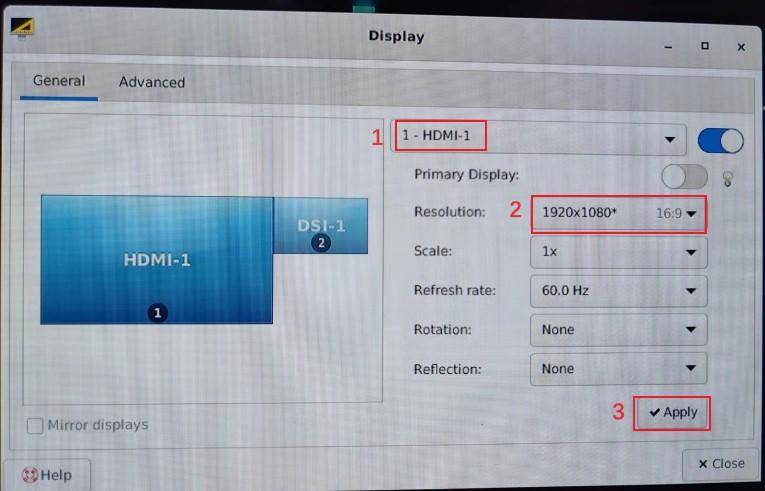

  1. Click “Applications” -> “Settings”->“Display”. 2. Choose “HDMI-1”or “DP-1”, then choose “Resolution”. 3. Click “Apply”.

HW Setting：​

J15：EDP VDD Power Select
Pin
3-5
1-3
3-4
Other

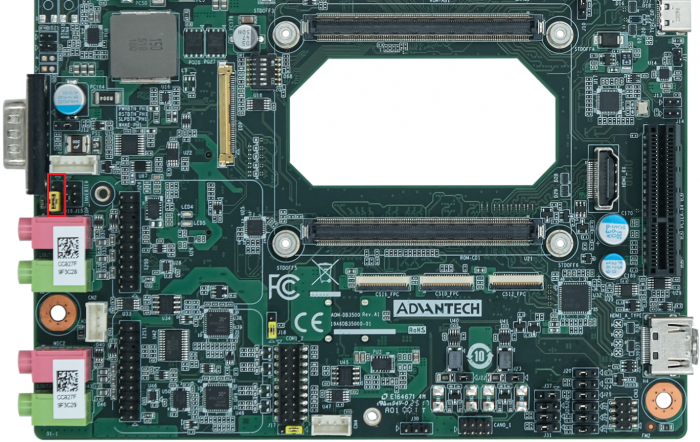

J16：EDP Backlight Power Select
Pin
1-2
3-4

SW setting：​

Multi-Display​

AOM-3841 supports three kinds of displays — HDMI, DSI, DP

1. DP physical interface is Type-C. 2. DP is always open and cannot be closed.

Support EDP Panel
Panel Model

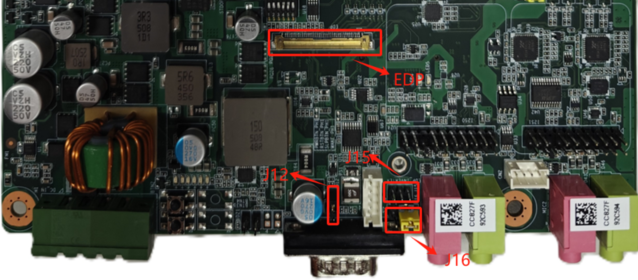

EDP HW Setting：

J12=>2-3 EDP HDP

J15=>3-5 （+VDD_EDP）+3.3V （B156XTN07.1）

J16=>2-3 （BKLT_VDD_LCD1）+12V

Dual-Display​

"HDMI + DP” is the default configuration.

  • HDMI + DP
# fw_setenv display0 hdmi0-default
# fw_setenv display1
# reboot
  • DSI + DP
# fw_setenv display0
# fw_setenv display1 mipi0-gl0uan
# reboot

Triple-Display​

  • HDMI + DSI + DP
# fw_setenv display0 hdmi0-default
# fw_setenv display1 mipi0-gl0uan
# reboot
