AFE-R761 GMSL/AHD board Installation

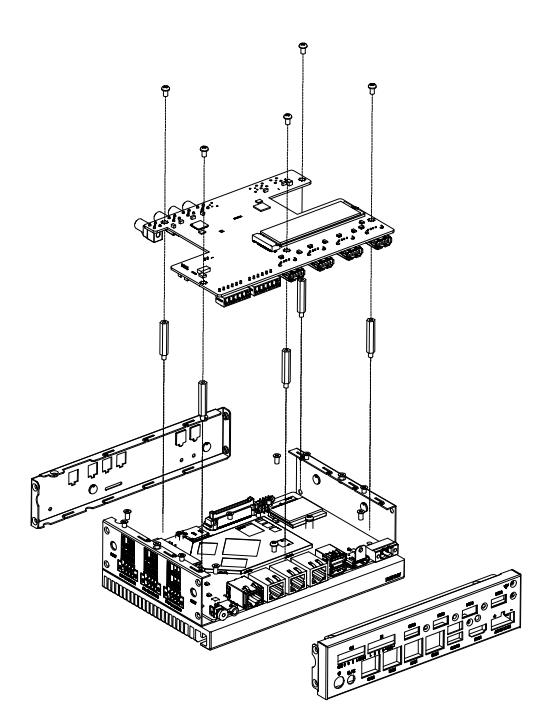

1.Remove the bottom cover. 2. Remove 6 x M3x6L screws on the bottom cover and 8 x M3x4L screws on the side I/O brackets. 3. Install AHD/GMSL board (AFE-RM01/AFE-RM02) via CN1 connector. 4. Fix board with 5 x M3x6L screws and 5 x Posts (F=M3x8L M=M3x4L B=5 H=25mm). 5. Re-place the I/O bracket and bottom cover.
