AFE-E630 Android 12 user guide

Contents​

  • 1产品介绍（Product Presentation） 1.1产品特性（product feature）
  • 2接口布局和尺寸(Layout and Sizes) 2.1接口布局圖（Board Dimension Layout）
  • 3快速入门（Quick Start） 3.1系统下载（Debian11 OS Dowload） 3.2Android 烧录方法（Android  Flash eMMC Method）
  • 4Liunx基本使用方法 4.1AFE-E630 Function： 4.2AFE-E630+UIO-4031 Function：
  • 5BSP/Linux编译 5.1Linux_BSP_User_Guide_for_AFE-E630_series-Android 12

产品介绍（Product Presentation）​

产品特性（product feature）​

  • RK3568J 4xA55@1.8GHz, 1 tops NPU
  • 4KP60 ,H265, H.264, VP9, VP8,MPEG decoding
  • 1080P60 H.265, H.264 encoding
  • 1 x HDMI2.0
  • 2 x GbE LAN, 2 x USB3.0, 2 x RS232/RS485, 1 x CAN FD, 6 x GPIO
  • Extend Non-isolated I/O: 4 x RS485, 2 x RS232, 2 x CAN FD, 8 x DI, 8 x DO
  • Extend Isolated I/O: 4 x RS485, 2 x CAN2.0, 8 x DI, 8 x DO
  • Support 4G/GPS/Wi-Fi6/BT/NVME SSD
  • Supprot wall mount or Din-rail mount
  • Linux and Andriod, Apphub, AIM-LINUX

产品官网链接（Product official website link）

AFE-E630 - 研华

接口布局和尺寸(Layout and Sizes)​

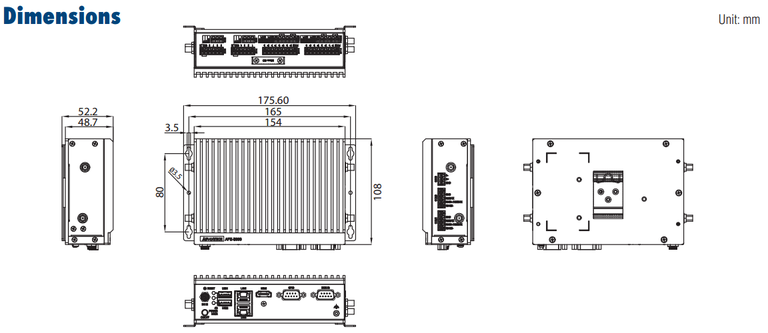

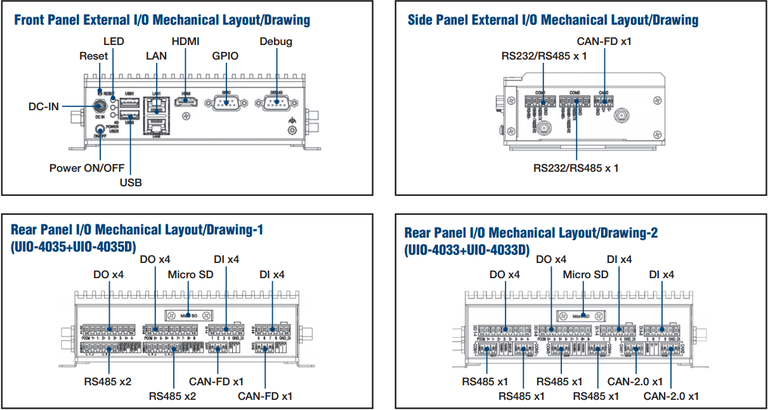

接口布局圖（Board Dimension Layout）​

快速入门（Quick Start）​

系统下载（Debian11 OS Dowload）​

Note：LIV=Yocto Linux , UIV=Ubuntu，DIV=Debain，AIV=Android

LBV=BSP，LIV=Image

ProductImage VersionRelease DateRelease VersionRelease notesImage DownloadBSP Download TagCommentTest Report
AFE-E630V120202024/12/09BetaRelease_NoteBaidu Password：a887RK3568_S12_AIV12020.xmlTest Report

  • Alpha:  Basic I/O function bring up by RD;

  • Beta:  Basic I/O function、performance and middleware verified by RD. Peripherals integrated;

  • GA:  Beta version by QE verification;

  • RTM:  Beta version by SI/Power/QE verification and pre-loaded;

Android 烧录方法（Android  Flash eMMC Method）​

Usering bootup_sd_disk made_by SDDiskTool for AFE-E630 Android12.

Liunx基本使用方法​

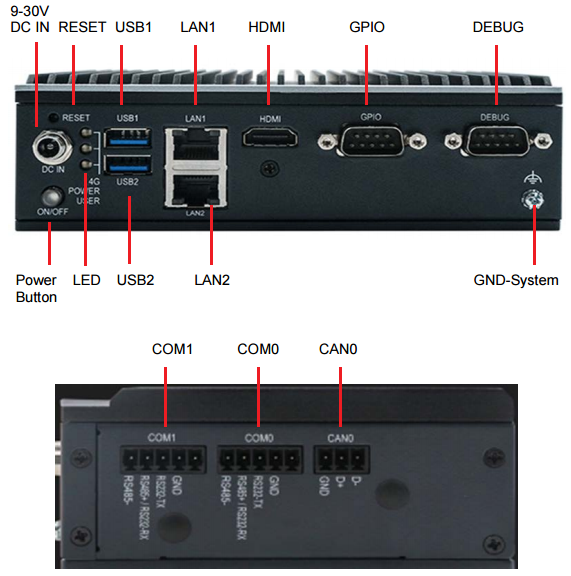

AFE-E630 Function：​

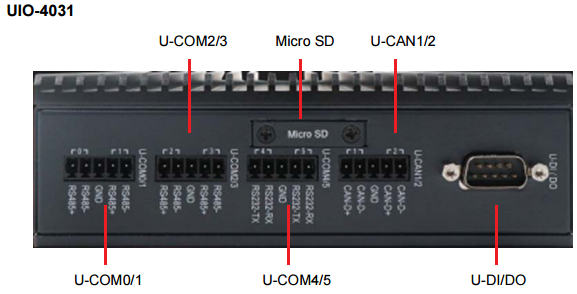

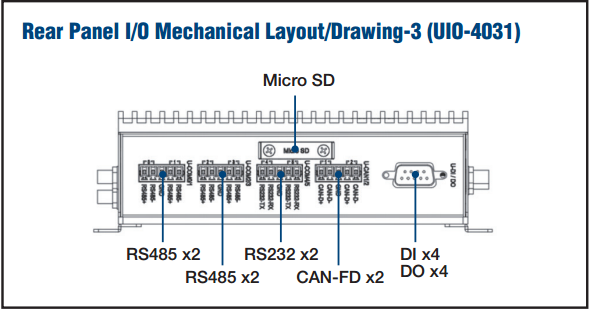

AFE-E630+UIO-4031 Function：​

BSP/Linux编译​

Linux_BSP_User_Guide_for_AFE-E630_series-Android 12​
